DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

Fig 1: Stop Light Switch - Wiring Diagram (1 Of 2)
G06035028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

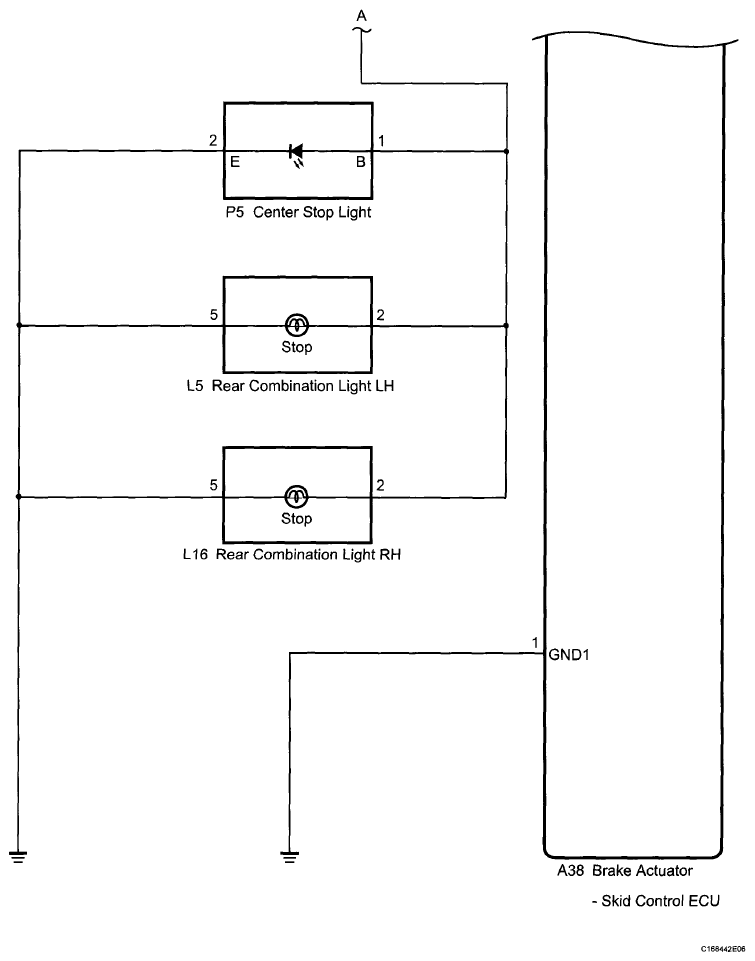

Fig 2: Stop Light Switch - Wiring Diagram (2 Of 2)
G06035029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
