Engine Immobiliser System
›
Notes
Engine Immobiliser System: Notes

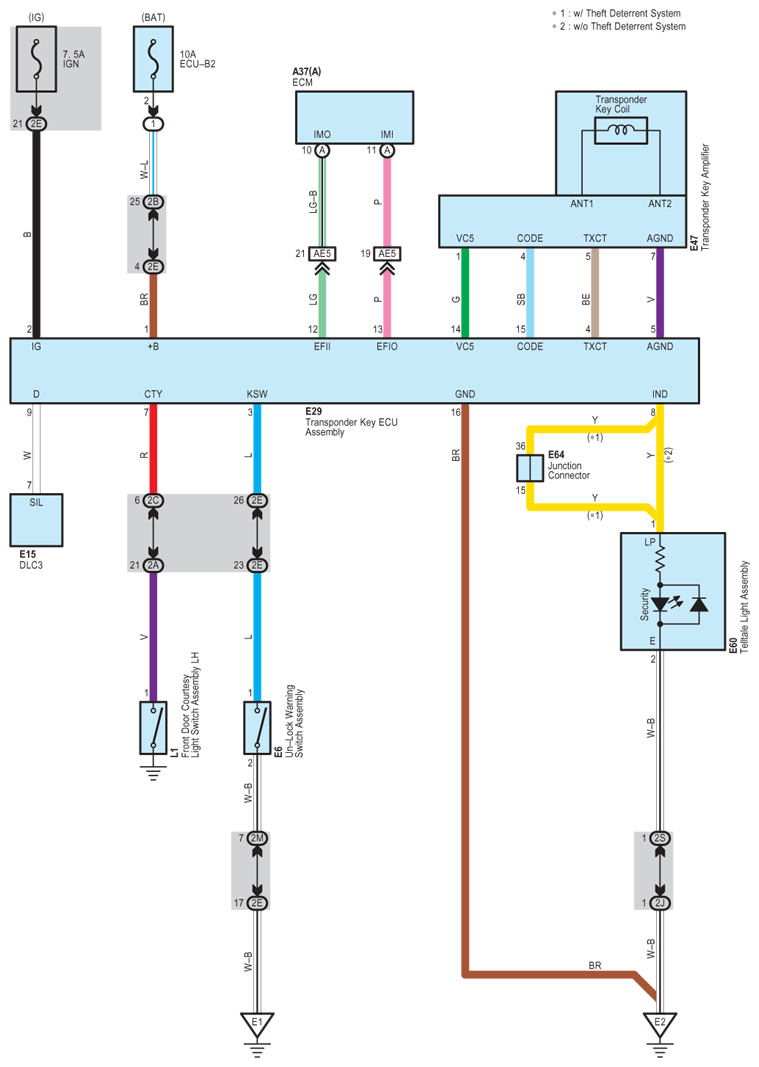

Fig 1: Engine Immobiliser System - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
