Front Wiper and Washer: Notes

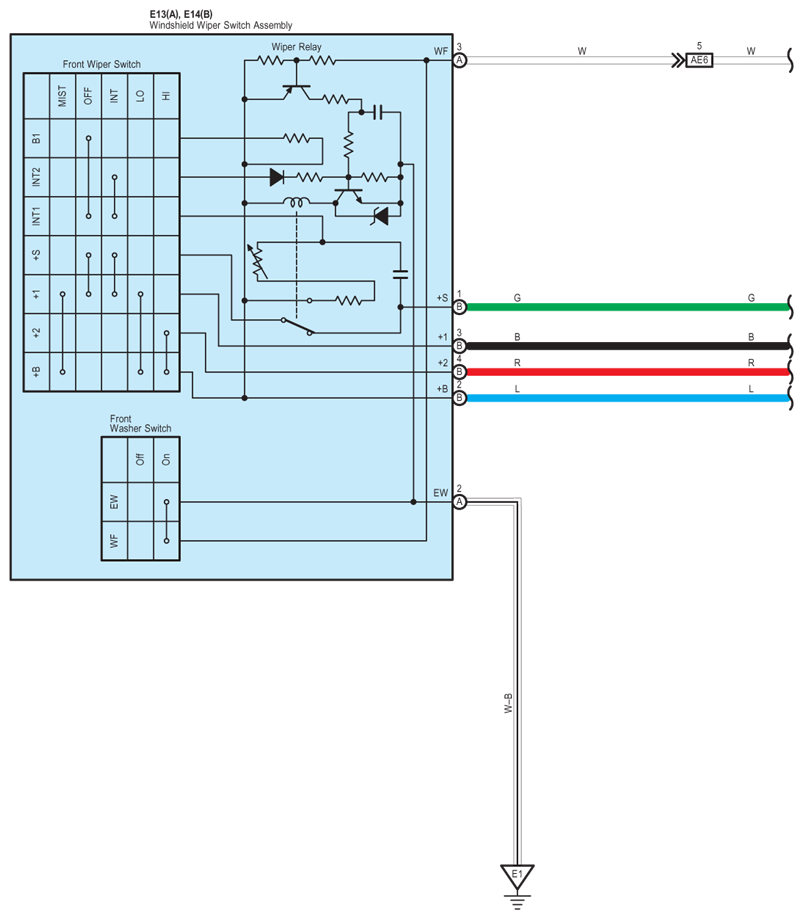

Fig 1: Front Wiper And Washer - Circuit Diagram (1 Of 2)
G07606262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

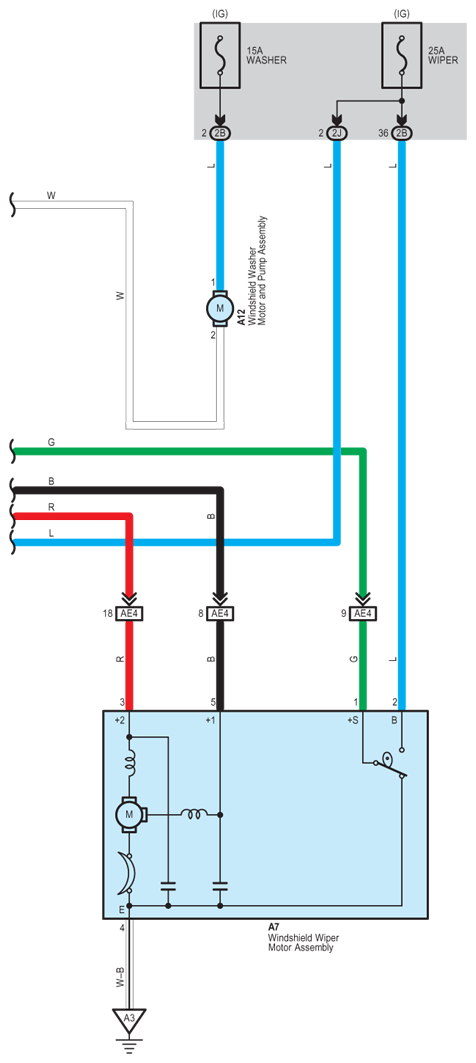

Fig 2: Front Wiper And Washer - Circuit Diagram (2 Of 2)
G07606263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
