Cigarette Lighter: Components

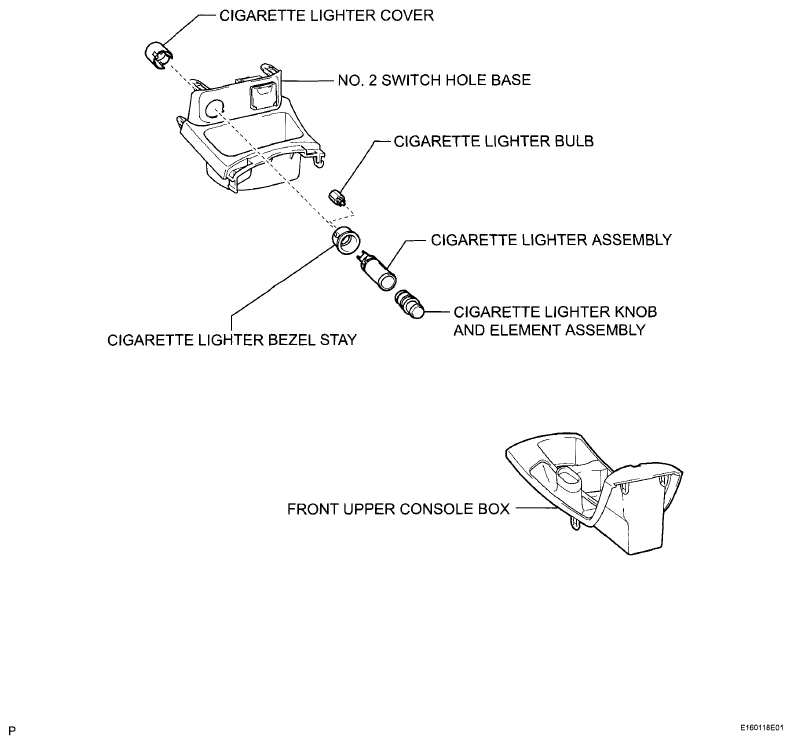

Fig 1: Identifying Cigarette Lighter Components

G06037780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
