Emission Control System (2ZR-FE): Canister: Installation

INSTALL CHARCOAL CANISTER ASSEMBLY
1. Install the 3 bolts and charcoal canister assembly.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

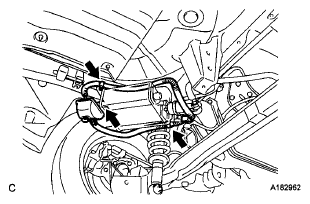

  Fig 1: Locating Charcoal Canister Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the charcoal canister filter sub-assembly and 2 clamps to the charcoal canister assembly.

  Fig 2: Locating Charcoal Canister Filter Sub-Assembly And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the purge line hose.
4. Connect the wire harness clamp.
5. Connect the vapor pressure sensor connector.

  Fig 3: Locating Purge Line Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel tank vent hose to the charcoal canister.

  Fig 4: Locating Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
