Fuel Sender Gauge Assembly: Components

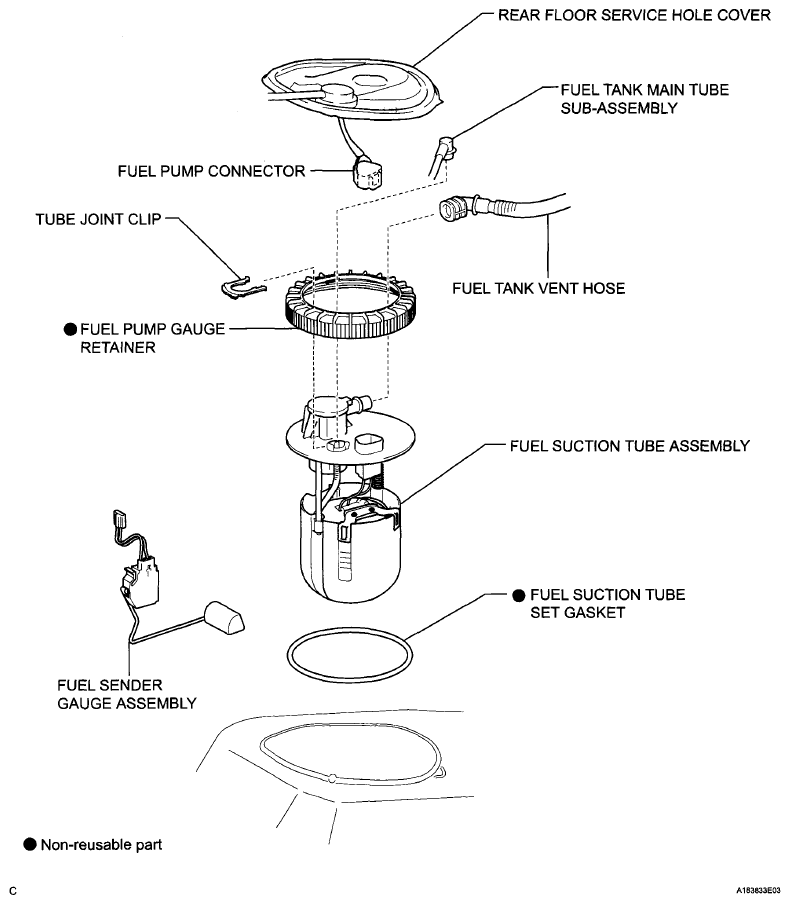

Fig 1: Identifying Fuel Sender Gauge Assembly Components

G06042120

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
