Air Fuel Ratio Sensor: Components

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components And Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

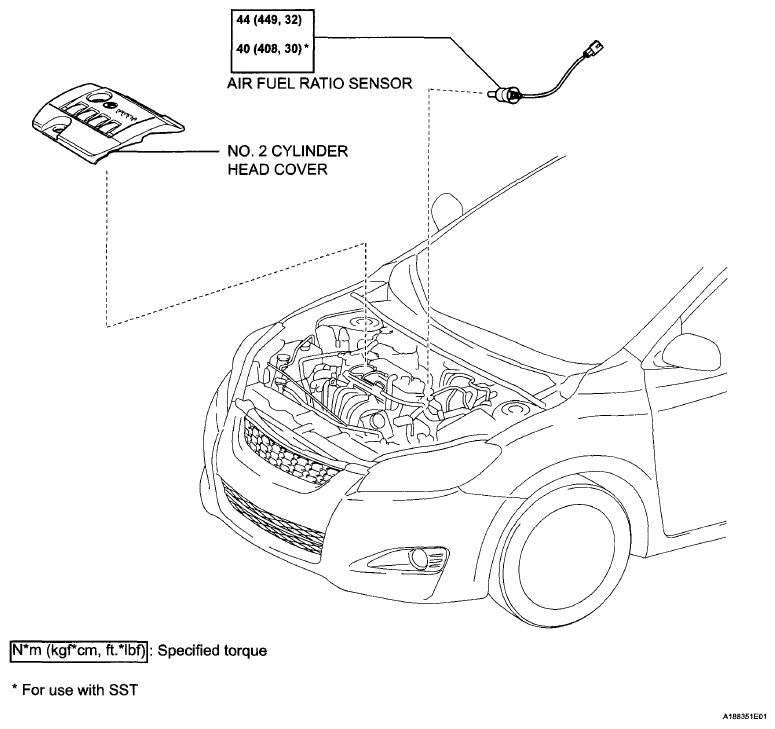

Fig 2: Identifying Air Fuel Ratio Sensor Replacement Components And Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
