Home › Toyota › 2009 › Matrix Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control System (2ZR-FE) › Camshaft Oil Control Valve › Components

Camshaft Oil Control Valve: Components

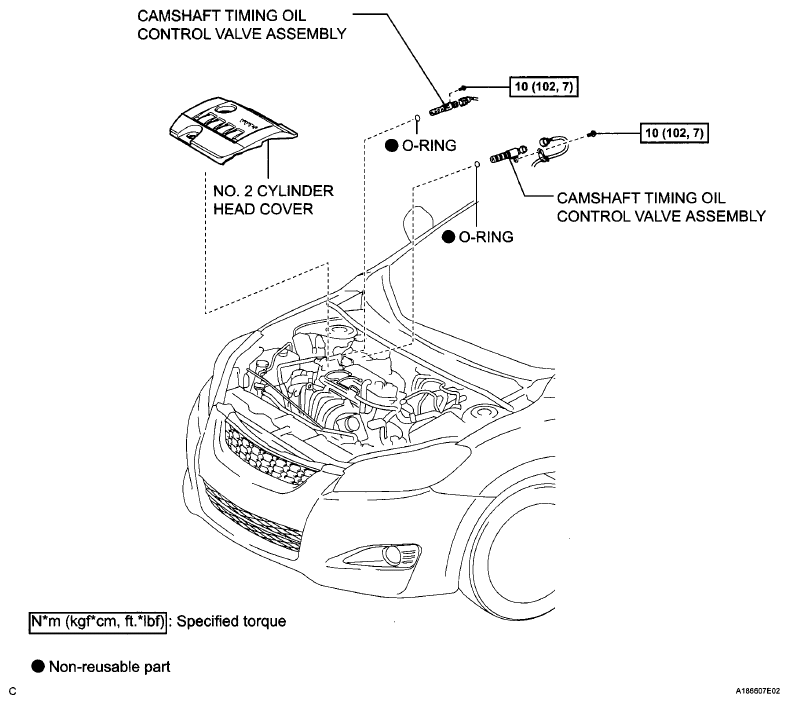

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
G06040756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
