Home › Toyota › 2009 › Matrix Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control System (2ZR-FE) › Mass Air Flow Meter › Components

Mass Air Flow Meter: Components

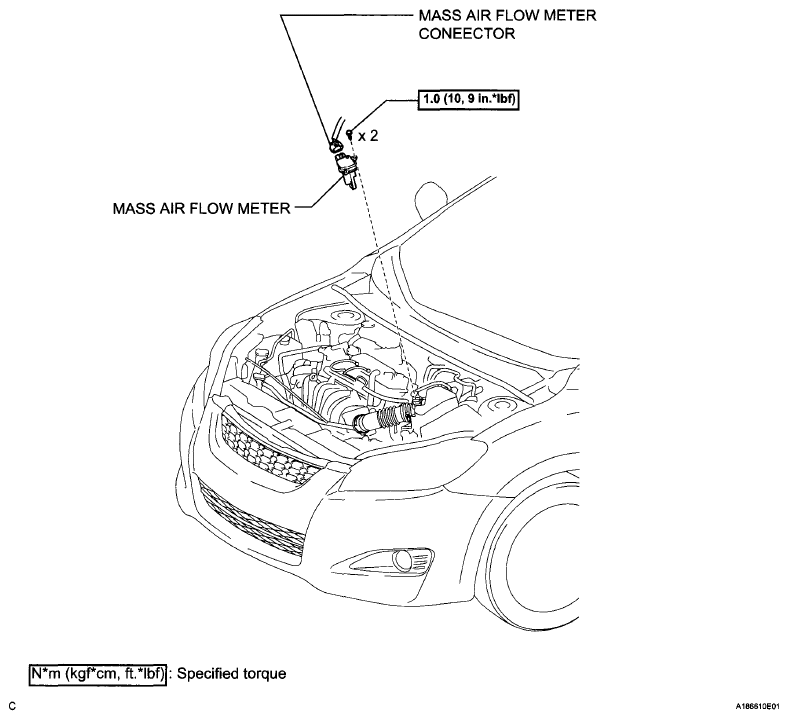

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
G06040794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
