DTC P2118 Throttle Actuator Control Motor Current Range / Performance
›
Wiring Diagram
DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

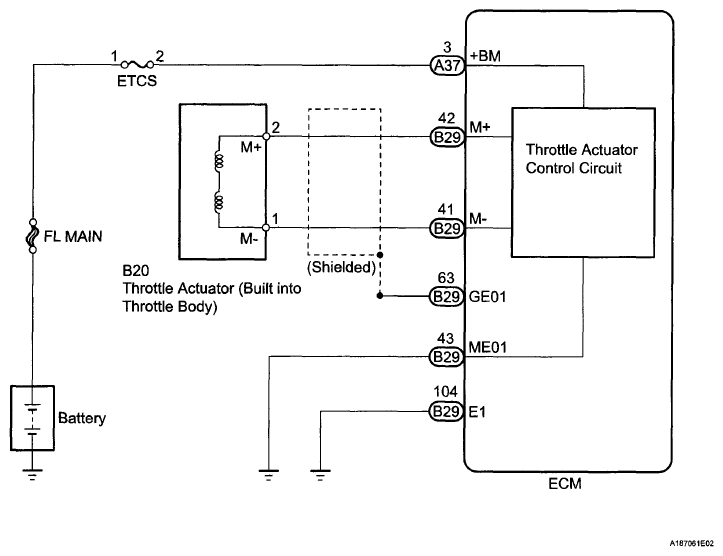

Fig 1: Throttle Actuator Control Motor Current Range / Performance - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
