Matrix Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2ZR-FE)
›
SFI System
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

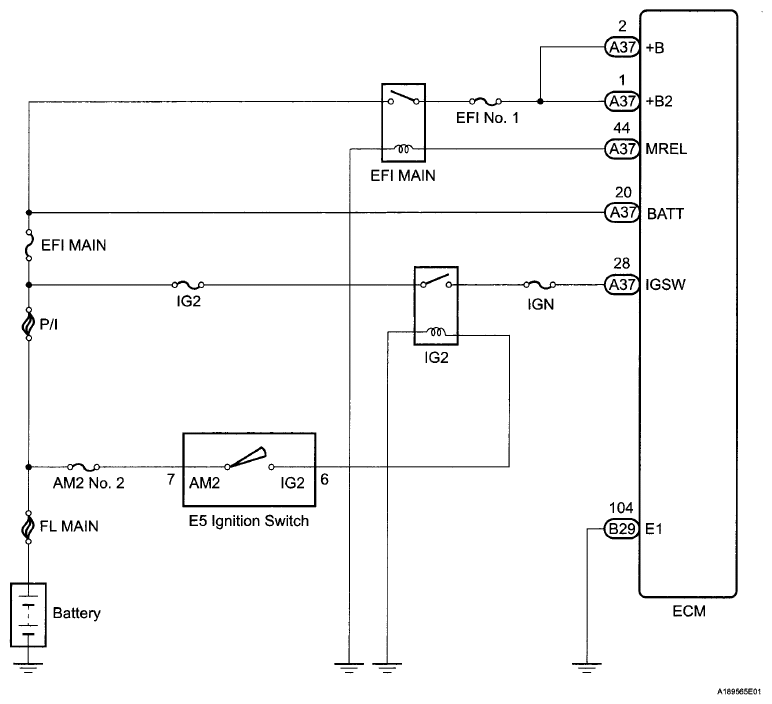

Fig 1: ECM Power Source Circuit - Wiring Diagram
