EVAP System: Wiring Diagram

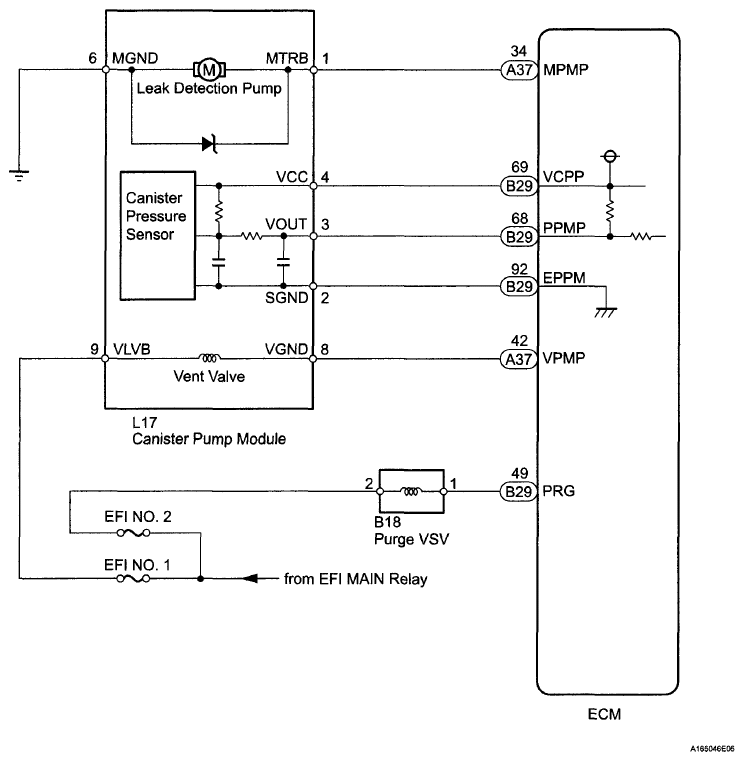

Fig 1: EVAP System - Wiring Diagram

G06040664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
