MIL Circuit: Wiring Diagram

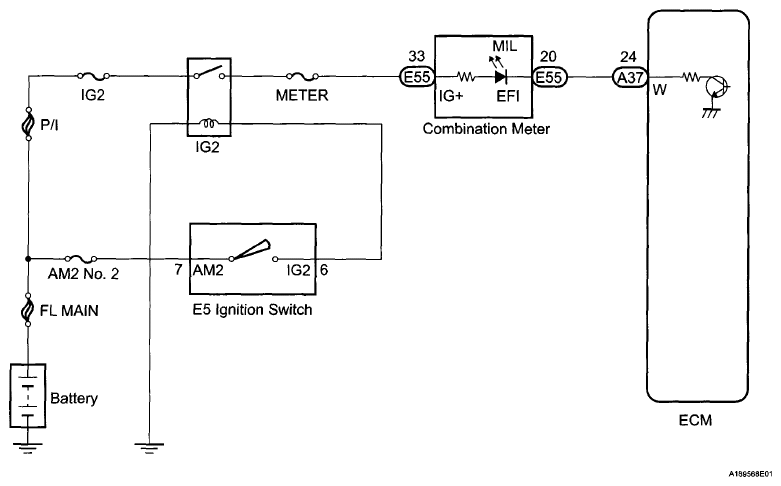

Fig 1: MIL Circuit - Wiring Diagram

G06040742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
