VC Output Circuit
›
Wiring Diagram
VC Output Circuit: Wiring Diagram

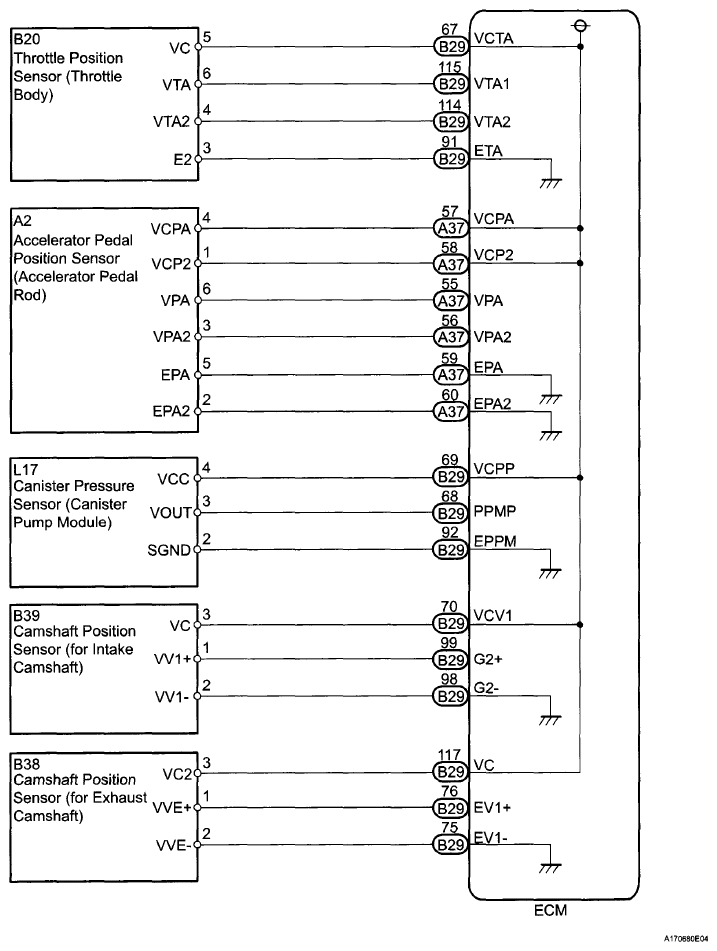

Fig 1: VC Output Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
