On-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT INTAKE SYSTEM
1. Check that there are no vacuum leaks at the points shown in the illustration.

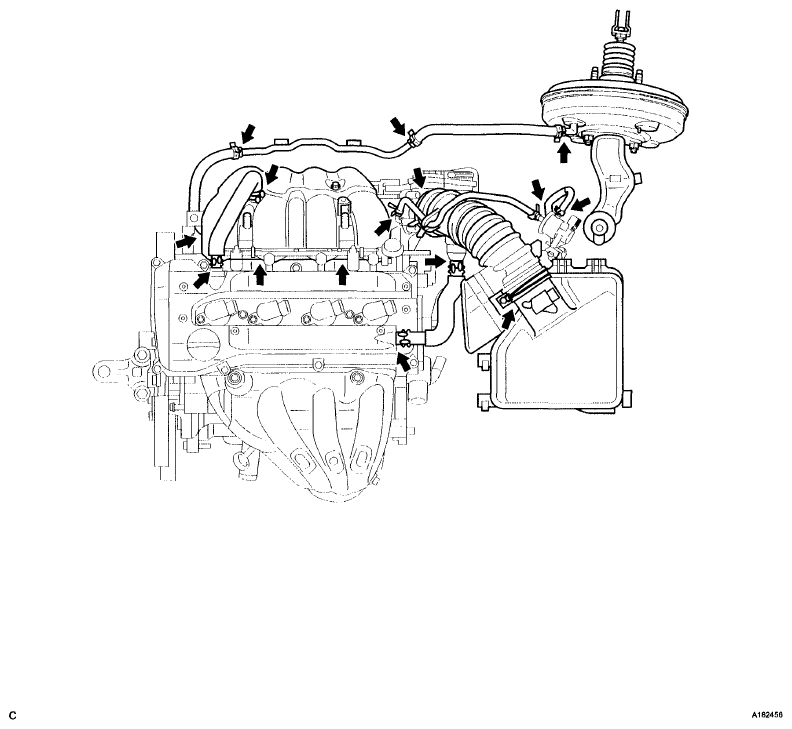

  Fig 1: Identifying Intake System Vacuum Leaks Points
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
