Section 9 (Starting System (2AZ-FE))
›
Starting System
›
Parts Location
Parts Location
WARNING:
This page is about a different variant/trim than selected.

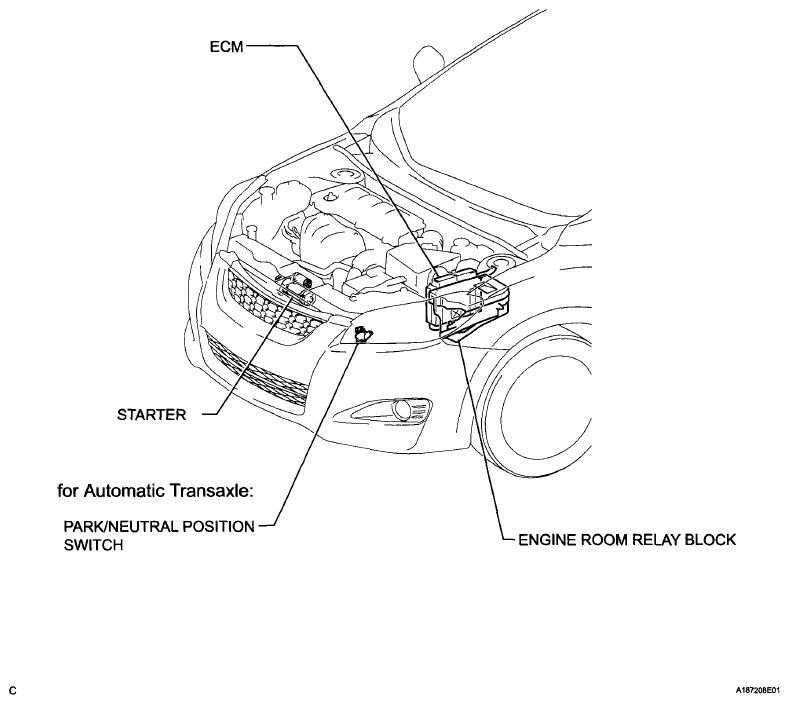

Fig 1: Identifying Starting System Parts Location (Automatic Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

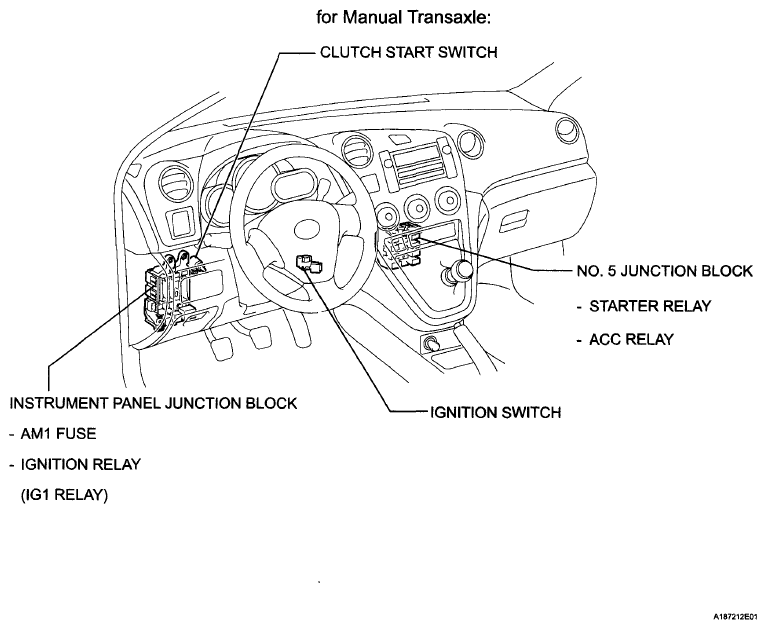

Fig 2: Identifying Starting System Parts Location (Manual Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
