Steering Wheel: Components

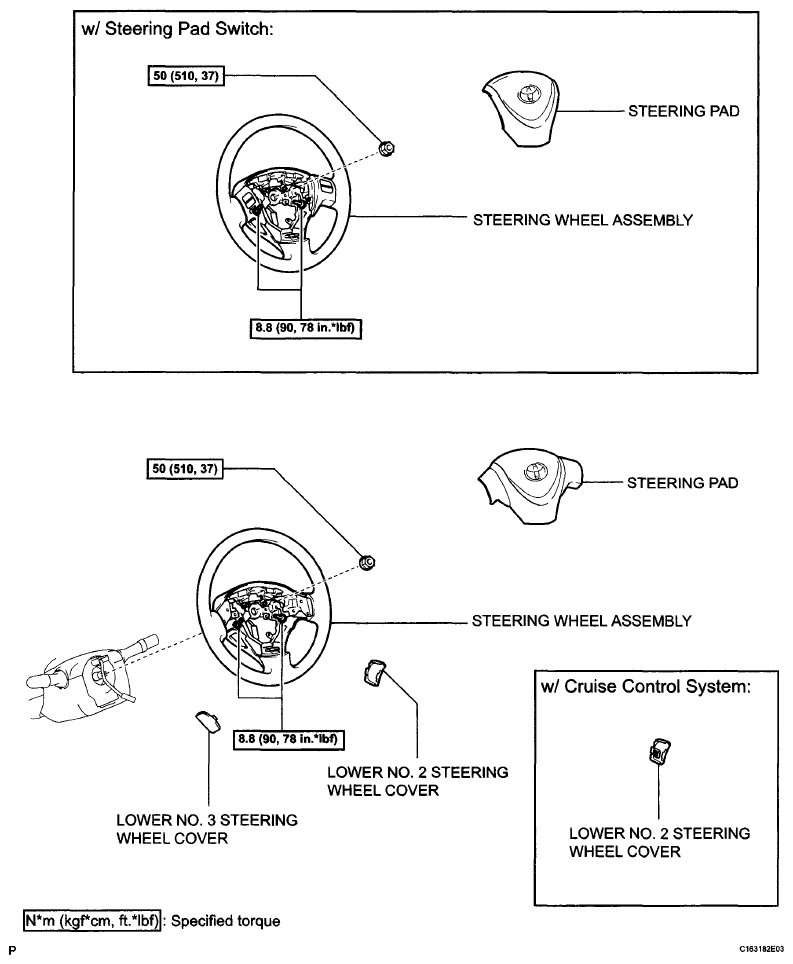

Fig 1: Steering Wheel Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

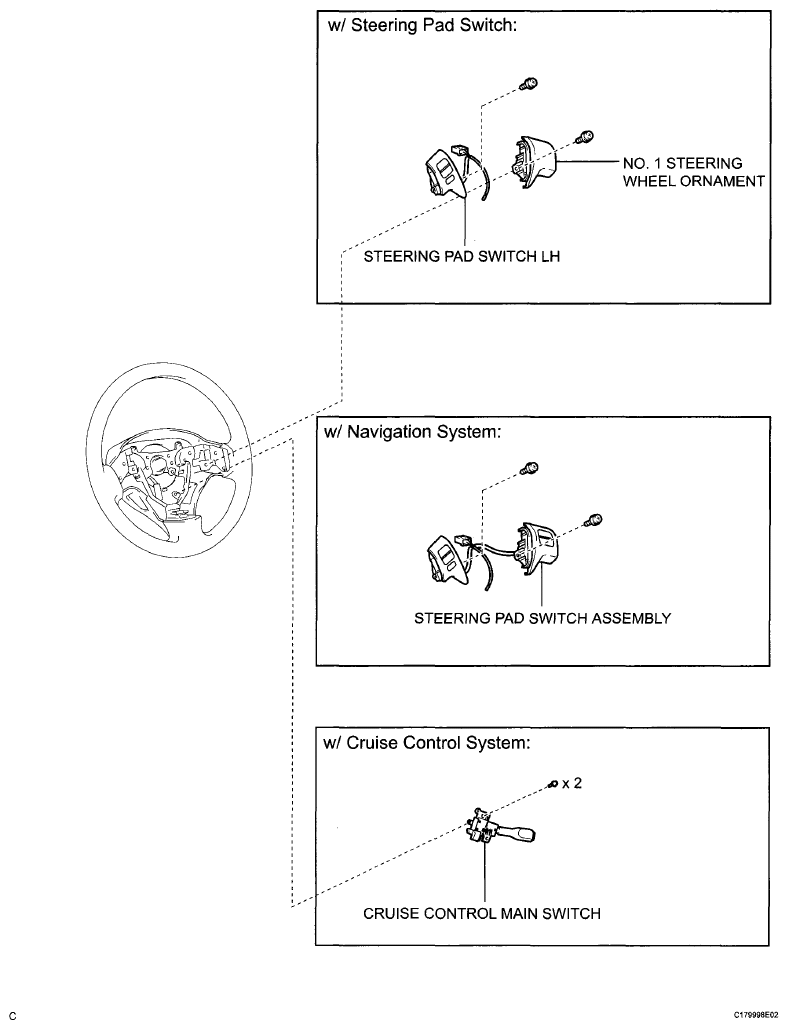

Fig 2: Identifying Steering Pad And Cruise Control Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

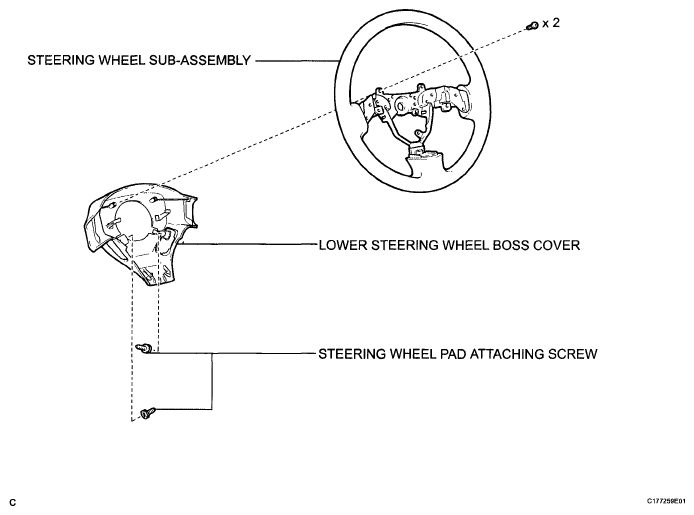

Fig 3: Identifying Lower Steering Wheel Boss Cover And Steering Wheel Pad Attaching Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
