Shift Lever: Installation

INSTALL SHIFT LEVER ASSEMBLY
NOTE: Check that the park/neutral position switch and the shift lever are in neutral.
1. Install the shift lever assembly with the 4 nuts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

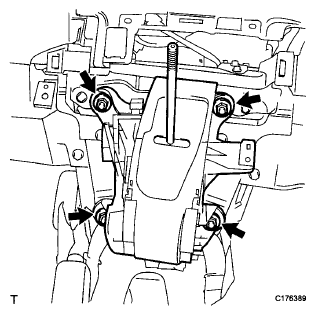

  Fig 1: Locating Shift Lever Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors and 2 clamps to the shift lever assembly.

  Fig 2: Locating Shift Lever Assembly And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Turn the nut of the transmission control cable 180° counterclockwise. While holding the nut in place, push in the stopper until it clicks twice.

  Fig 3: Identifying Stopper And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the outer part of the transmission control cable to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.

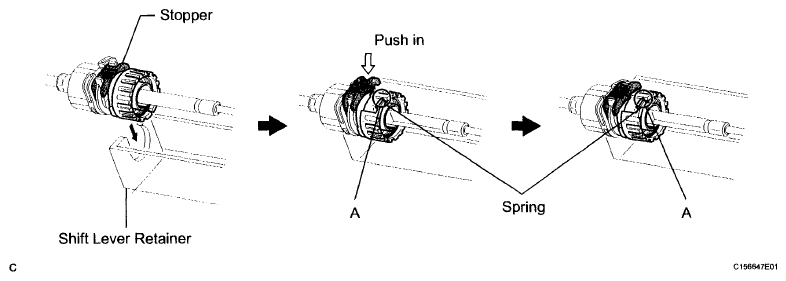

  Fig 4: Identifying Shift Lever Retainer And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.
3. Push the 2 claws together at the top of the transmission control cable lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.

  Fig 5: Pushing Lugs On Bottom Of Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the cable end to the shift lever assembly.
  NOTE:
  - Check that the lock piece is pulled up.
  - Install the cable end all the way to the base of the pin.

    Fig 6: Locating Shift Lever Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push the lock piece into the adjuster case.
NOTE: Securely push in the lock piece until it locks.

Fig 7: Pushing Lock Piece Into Adjuster Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (See INSTALLATION )
INSTALL FRONT NO. 1 CONSOLE BOX INSERT (See INSTALLATION )
INSTALL FRONT NO. 2 CONSOLE BOX INSERT (See INSTALLATION )
INSTALL FRONT CONSOLE BOX ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE BOX CARPET
INSTALL NO. 2 SWITCH HOLE BASE (See INSTALLATION )
INSTALL FRONT UPPER CONSOLE BOX (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
