Can Communication System
›
Skid Control ECU Communication Stop Mode
›
Wiring Diagram
Skid Control ECU Communication Stop Mode: Wiring Diagram

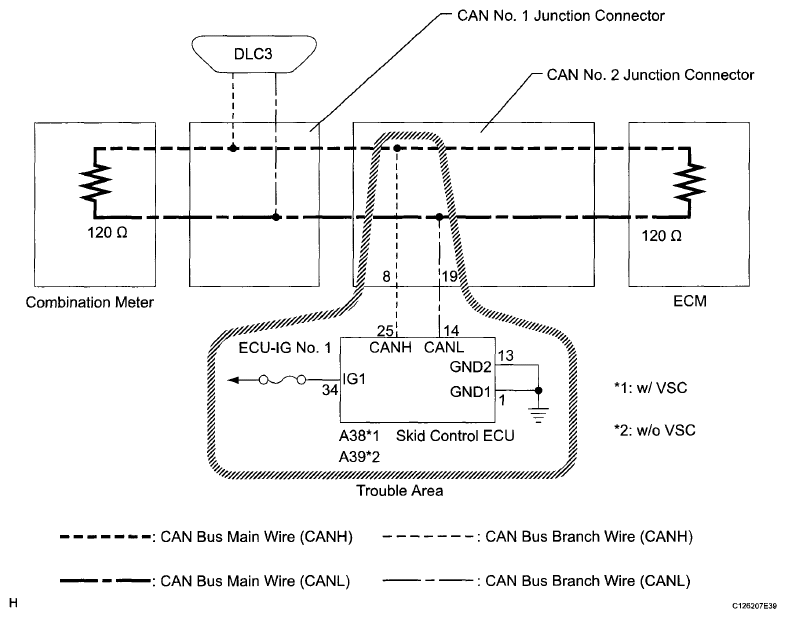

Fig 1: Skid Control ECU Communication - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
