Toyota
›
2009
›
Matrix Base, Standard
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
Networking
›
Can Communication System
›
Steering Angle Sensor Communication Stop Mode
›
Wiring Diagram
Steering Angle Sensor Communication Stop Mode: Wiring Diagram

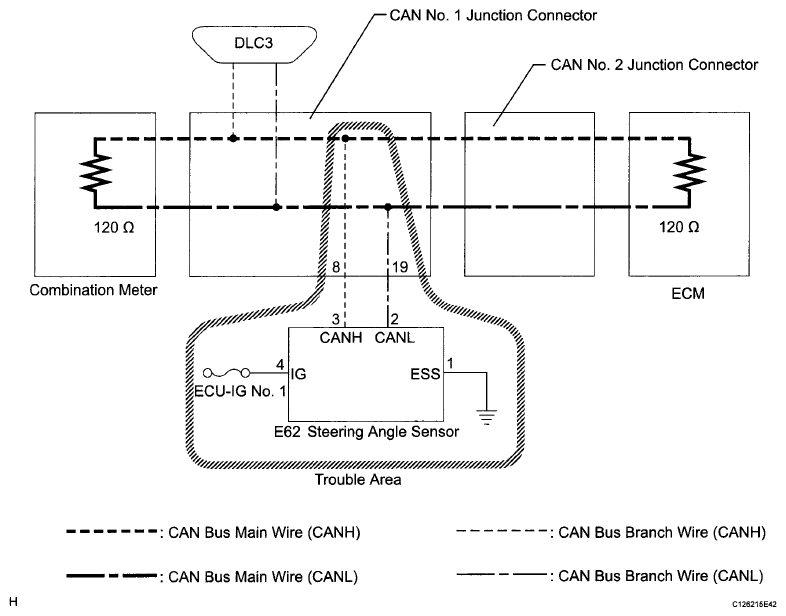

Fig 1: Steering Angle Sensor Communication - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
