Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Door Lock
›
Wireless Door Lock Control System
›
No Answer-Back
›
Wiring Diagram
No Answer-Back: Wiring Diagram

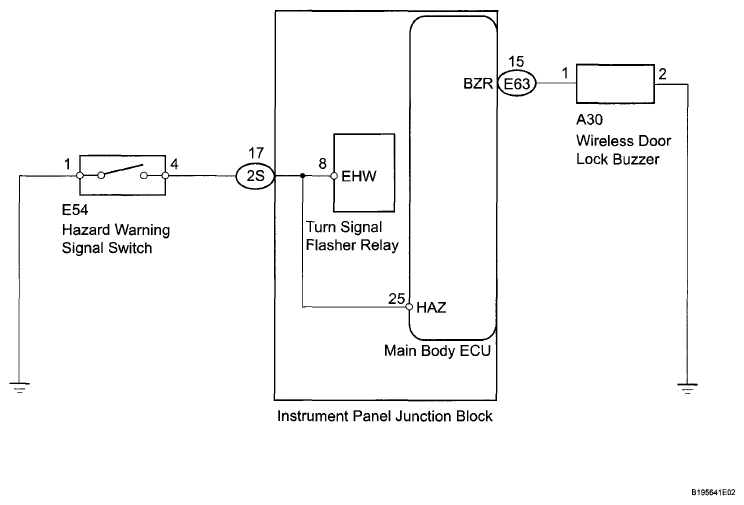

Fig 1: Hazard Warning Signal Switch - Wiring Diagram
