Front Axle Hub Bolt: Components

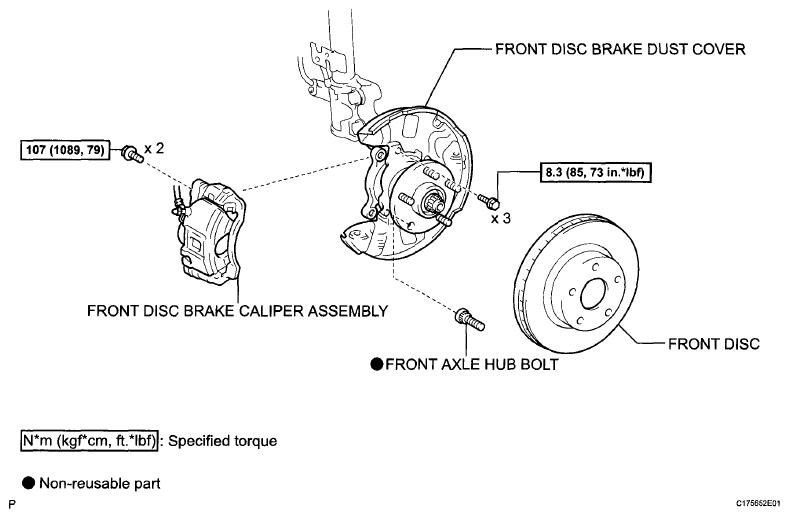

Fig 1: Front Axle Hub Bolt And Related Replacement Components With Torque Specifications
G06034263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
