Front Axle Hub: Components

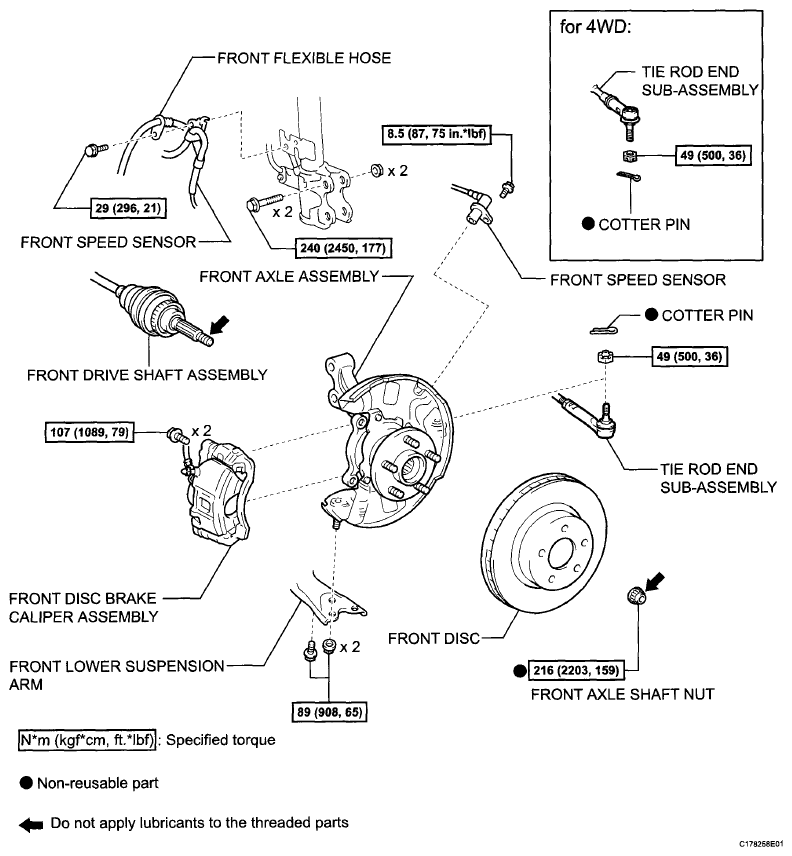

Fig 1: Front Axle Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

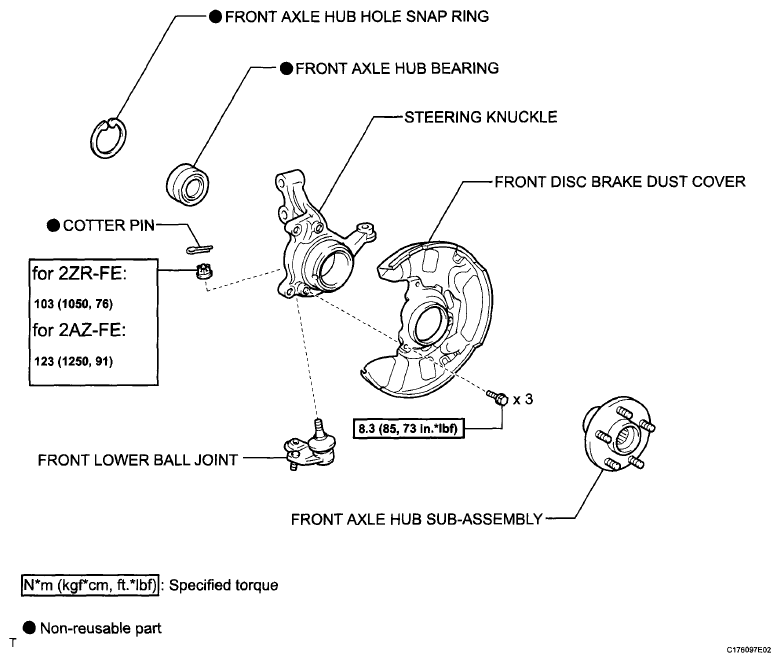

Fig 2: Front Axle Hub And Related Replacement Components With Torque Specifications
