Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY

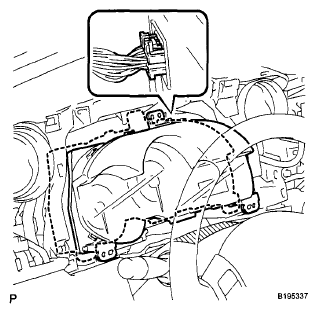

1. Connect the connector and temporarily install the combination meter assembly.
  NOTE: When installing the combination meter assembly, do not damage the upper instrument panel sub-assembly and combination meter assembly.

  Fig 1: Identifying Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

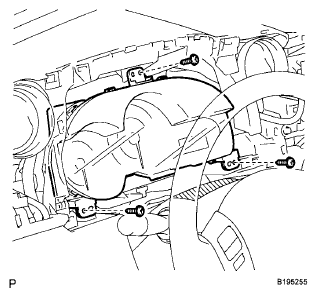

2. Install the combination meter assembly with the 3 screws.
Fig 2: Identifying Combination Meter And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL METER HOOD SUB-ASSEMBLY

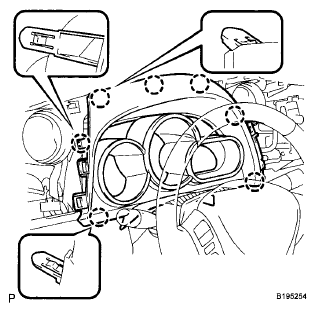

1. Engage the 7 claws and install the meter hood sub-assembly.

  Fig 3: Identifying Meter Hood Sub-Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the applied protective tape on the steering column cover.

  Fig 4: Applying/Removing Protective Tape On Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
