Cylinder Block: Replacement

REPLACE RING PIN
NOTE: It is not necessary to remove the ring pins unless they are being replaced.
1. Remove the ring pins.
2. Using a plastic hammer, tap in the ring pins.
  Standard protrusion:

  7.5 to 8.5 mm (0.295 to 0.335 in.)
REPLACE STUD BOLT
NOTE: If any of the stud bolts is deformed or the threads are damaged, replace it.
1. Remove the stud bolts.

  Fig 1: Locating Stud Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a "TORX" socket E6, install the stud bolts as shown in the illustration.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

REPLACE STRAIGHT PIN

NOTE: It is not necessary to remove the straight pins unless they are being replaced.

Remove the straight pins.

Fig 2: Locating Straight Pins
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using a plastic hammer, tap in the straight pins.

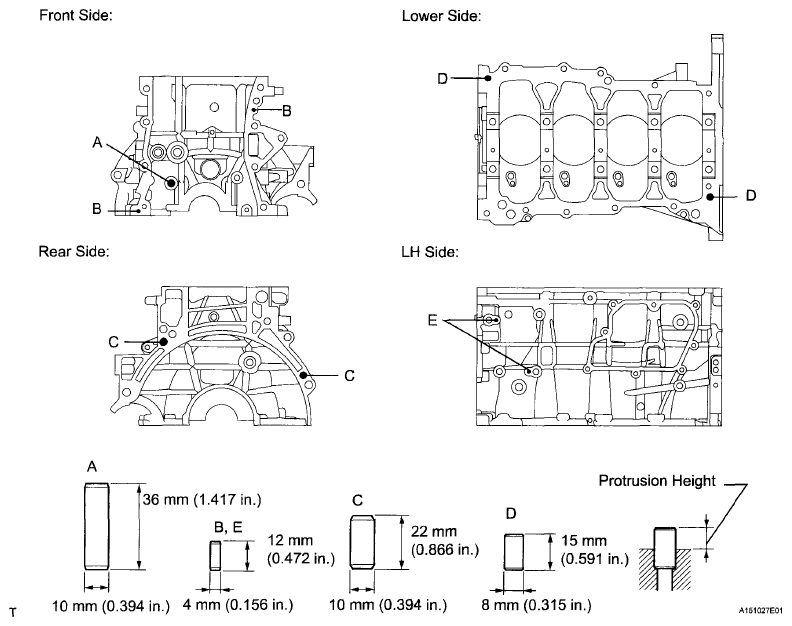

Fig 3: Straight Pins Dimension Chart

G06009088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Protrusion

STANDARD PROTRUSION CHART

Item	Protrusion
Pin A	18.5 to 19.5 mm (0.729 to 0.768 in.)
Pin B	5.0 to 7.0 mm (0.197 to 0.276 in.)
Pin C	11 to 13 mm (0.433 to 0.512 in.)
Pin D	5.0 to 7.0 mm (0.197 to 0.276 in.)
Pin E	5.0 to 6.0 mm (0.197 to 0.236 in.)
