Timing Gear: Components

Fig 1: Timing Gear Replacement Components With Torque Specifications (1 Of 2)
G06008696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

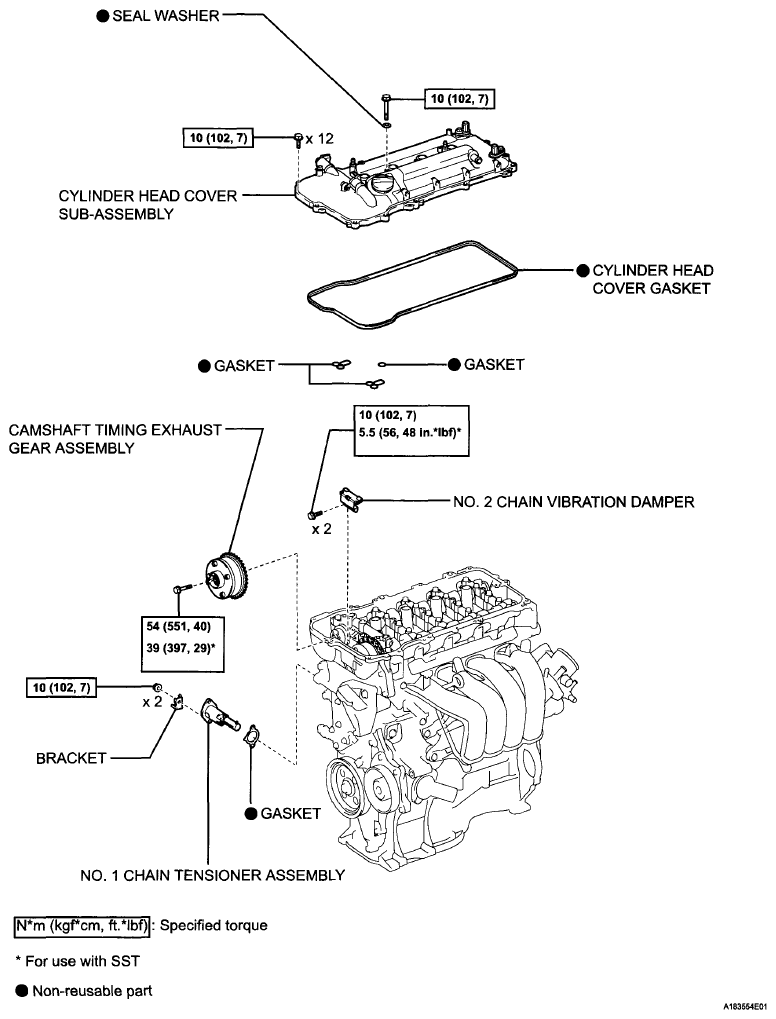

Fig 2: Timing Gear Replacement Components With Torque Specifications (2 Of 2)
G06008697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
