DTC P0500 Vehicle Speed Sensor "A"
›
Wiring Diagram
DTC P0500 Vehicle Speed Sensor "A": Wiring Diagram

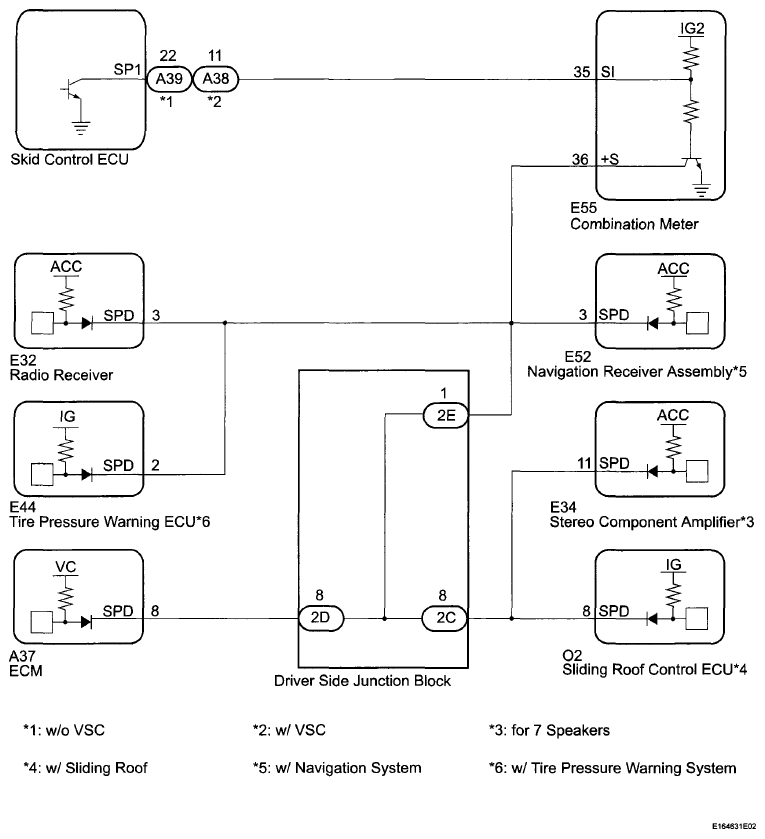

Fig 1: Vehicle Speed Sensor "A" - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
