Transfer Case Rear Oil Seal: Components

WARNING: This page is about a different variant/trim than selected.

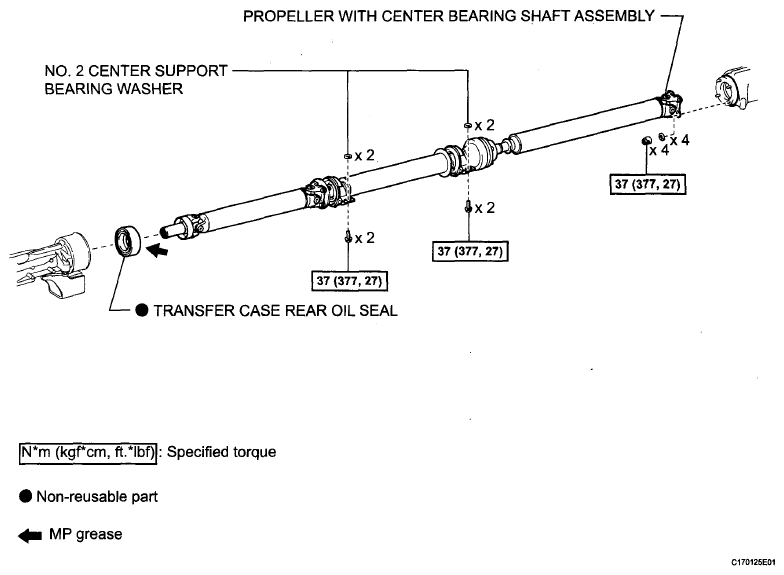

Fig 1: Transfer Case Rear Oil Seal Replacement Components With Torque Specifications

G06045849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
