Automatic Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

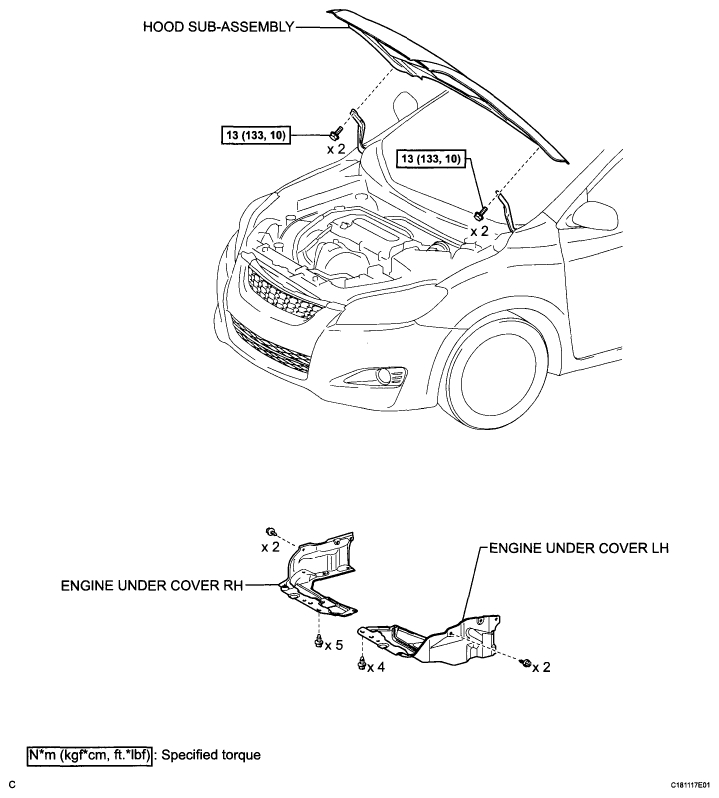

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

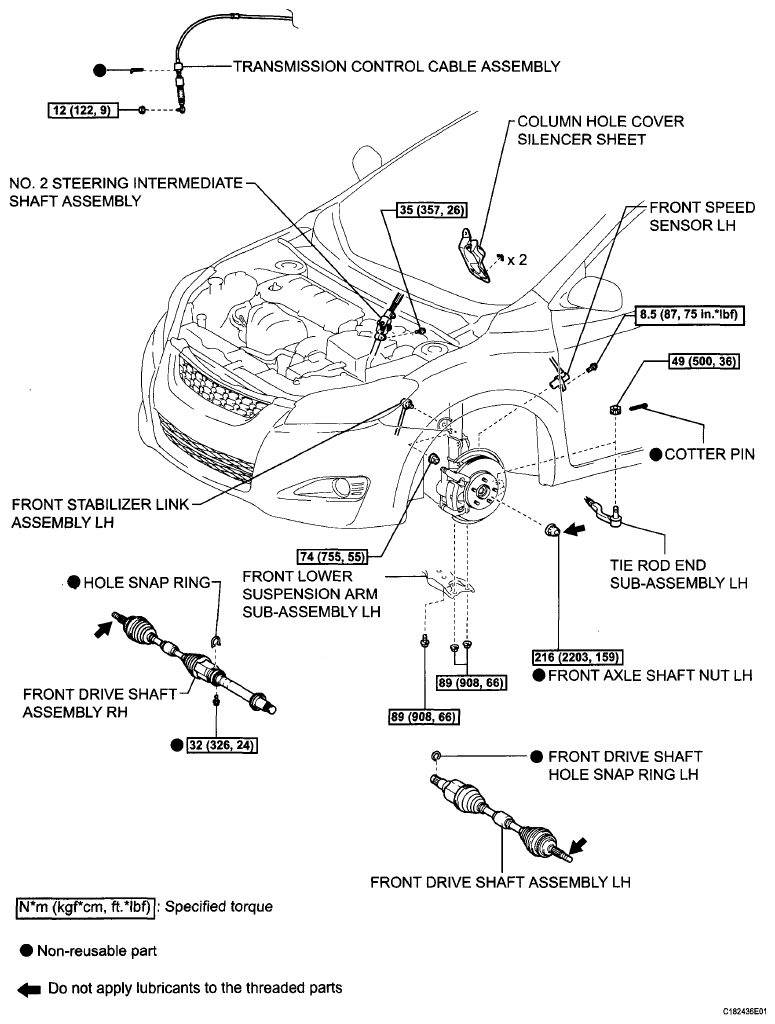

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

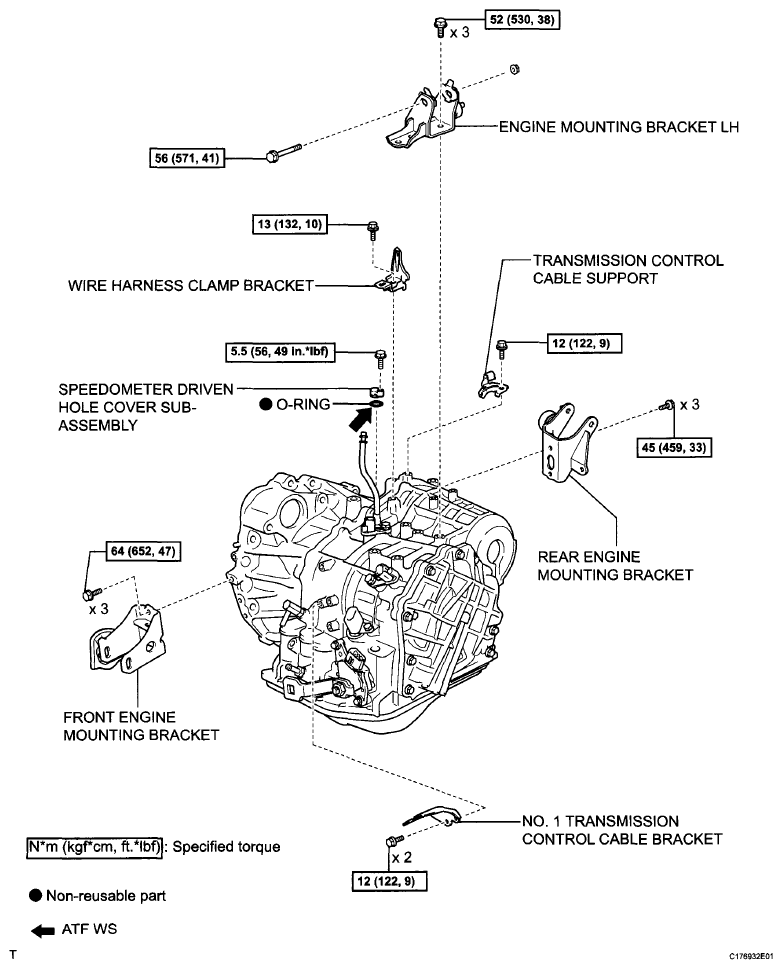

Fig 3: Speed Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

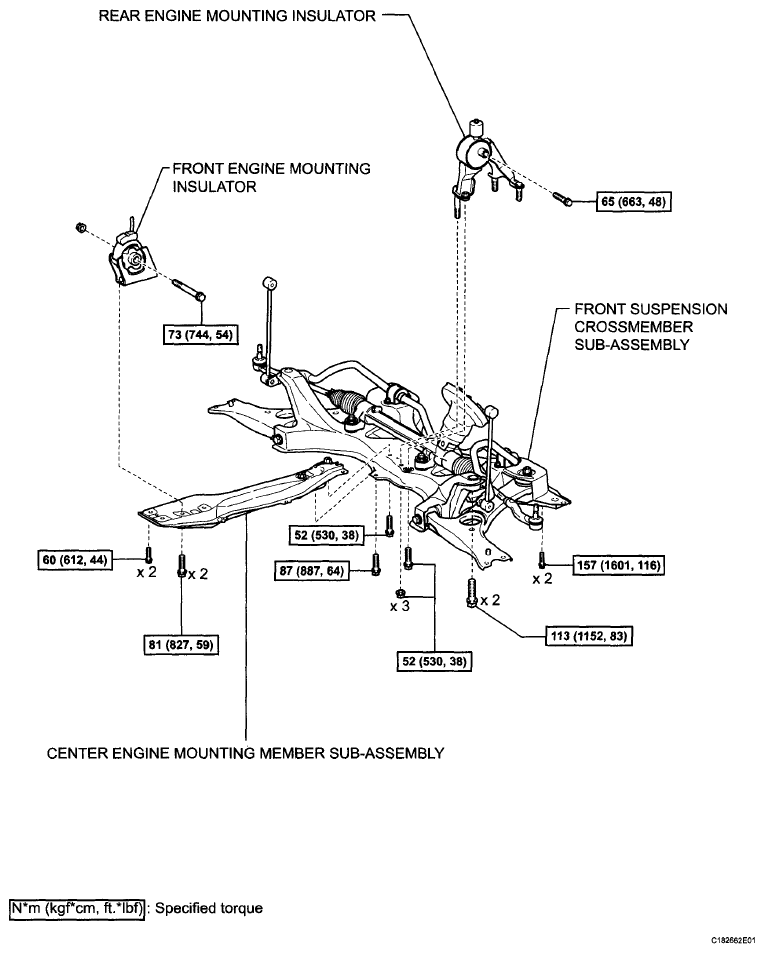

Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

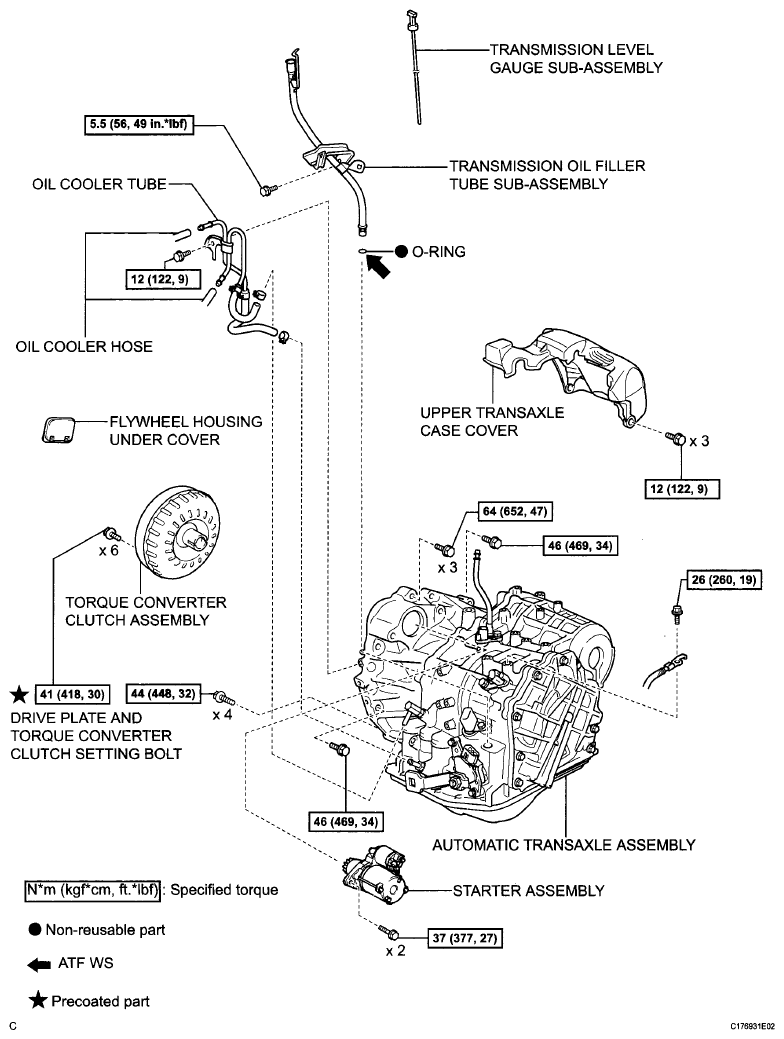

Fig 6: Automatic Transaxle Assembly Replacement Components With Torque Specifications (6 Of 8)

Fig 7: Automatic Transaxle Assembly Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Automatic Transaxle Assembly Replacement Components With Torque Specifications (8 Of 8)
