Section 13 (Automatic Transmission - U250E)
›
Park / Neutral Position Switch
›
Components
Park / Neutral Position Switch: Components
WARNING:
This page is about a different variant/trim than selected.

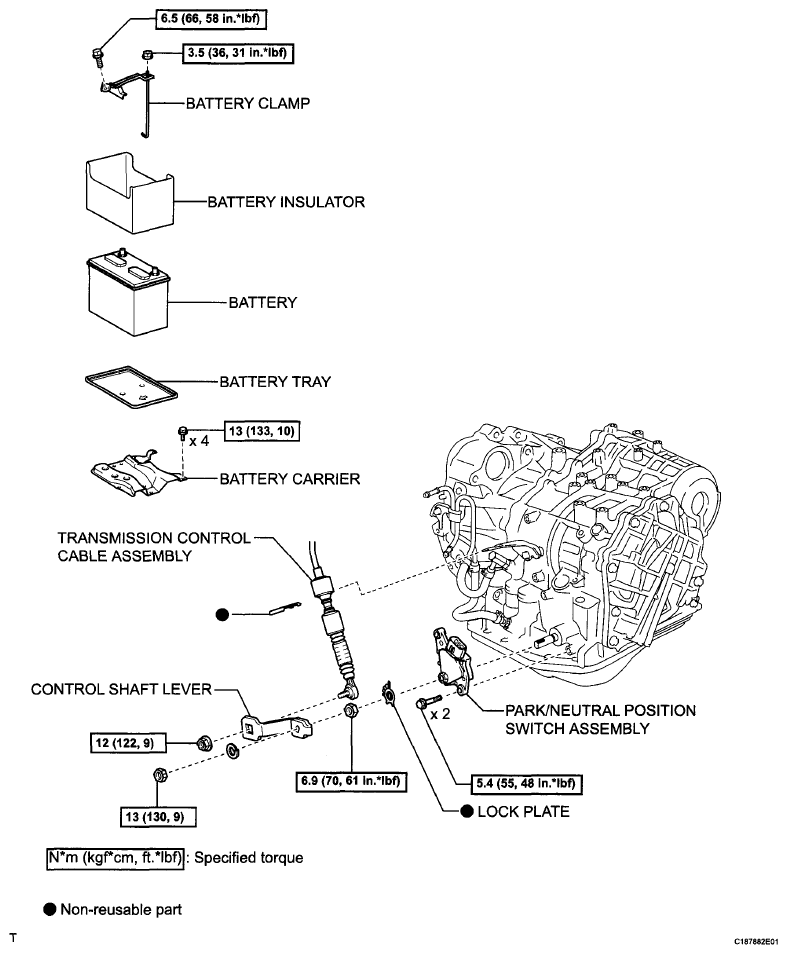

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
