Transmission Control Cable: Components

WARNING: This page is about a different variant/trim than selected.

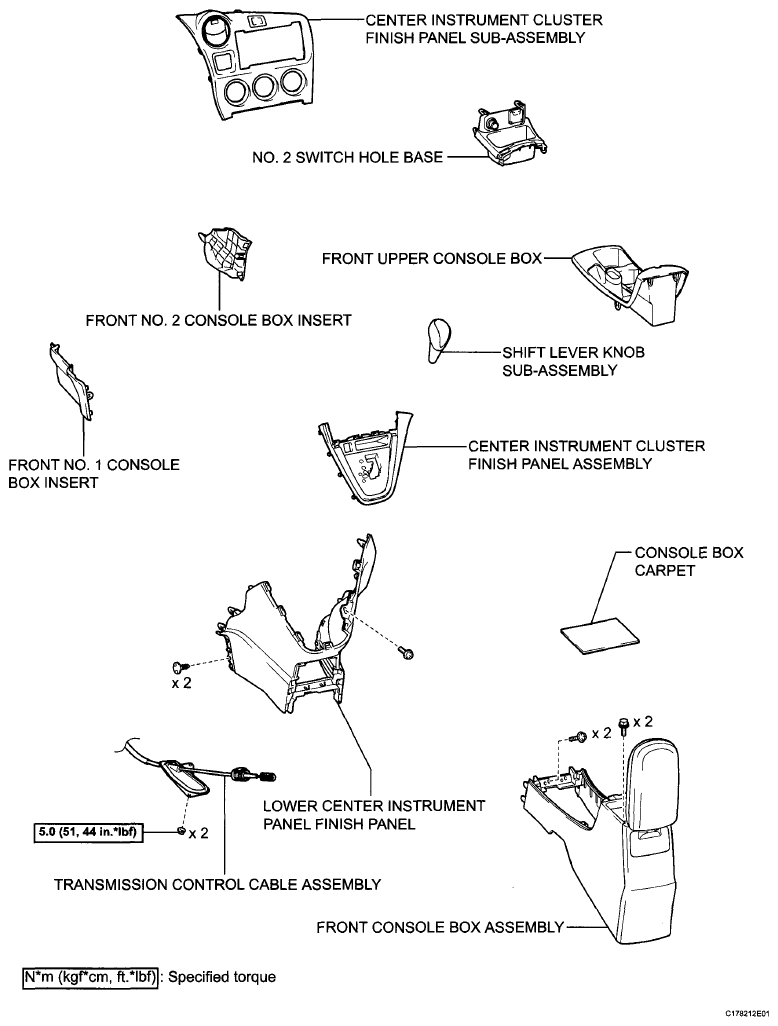

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)
