Cylinder Block: Components

WARNING: This page is about a different variant/trim than selected.

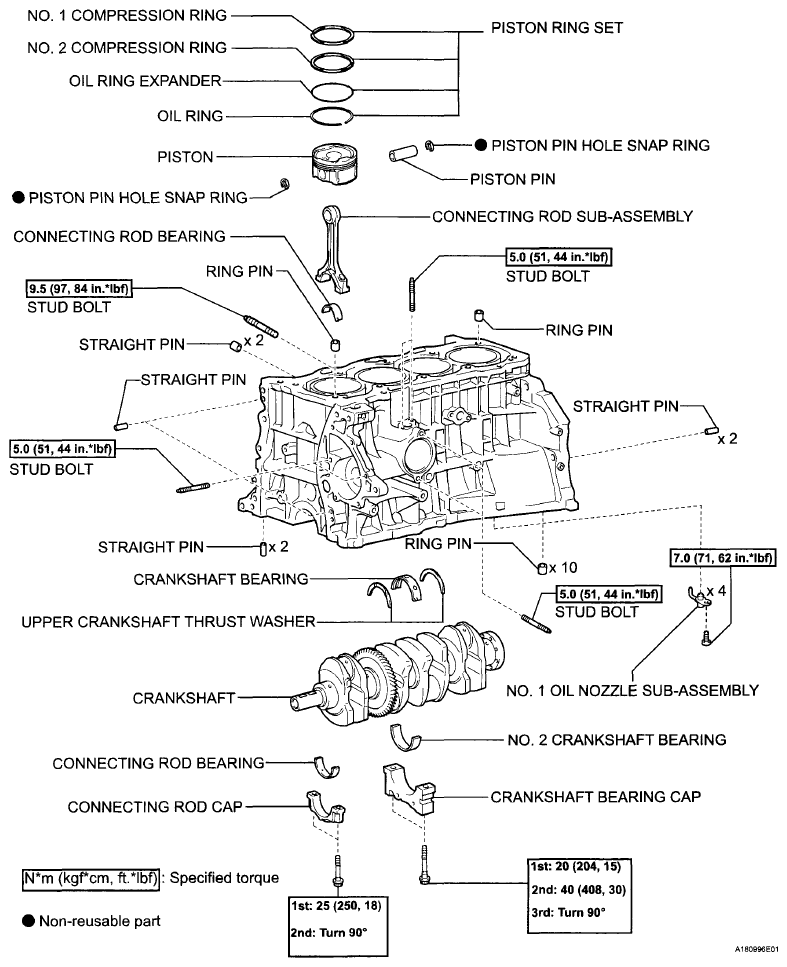

Fig 1: Cylinder Block Replacement Components With Torque Specifications
G06008586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
