Air Conditioning Pressure Sensor: Components

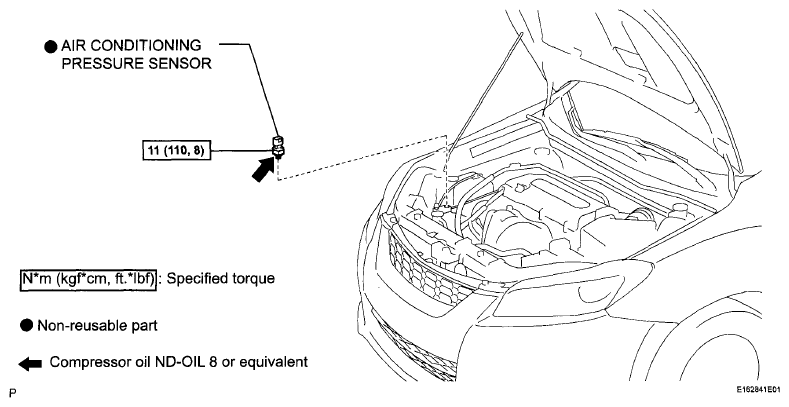

Fig 1: Air Conditioning Pressure Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
