Air Conditioning Unit: Components

Fig 1: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

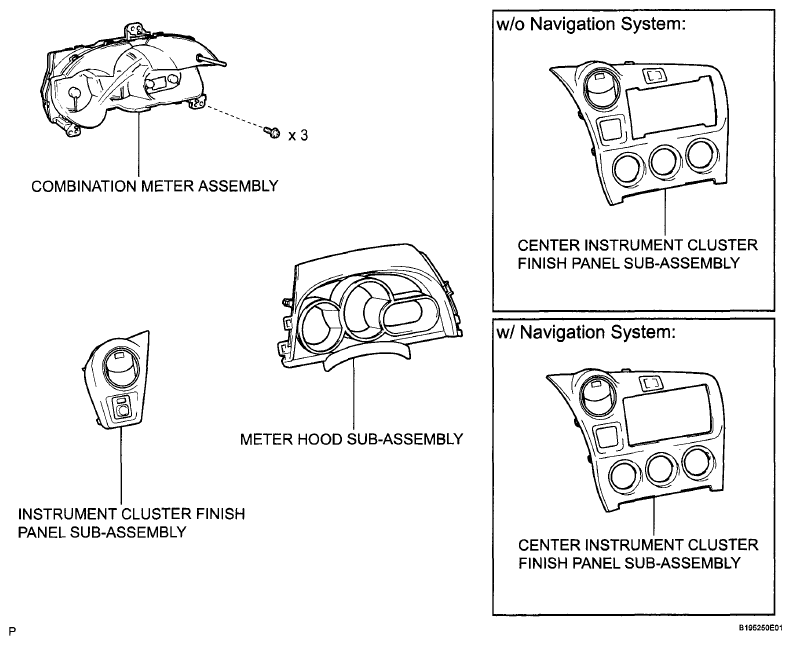

Fig 2: Identifying Air Conditioning Unit Components (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Air Conditioning Unit Components (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (10 Of 12)

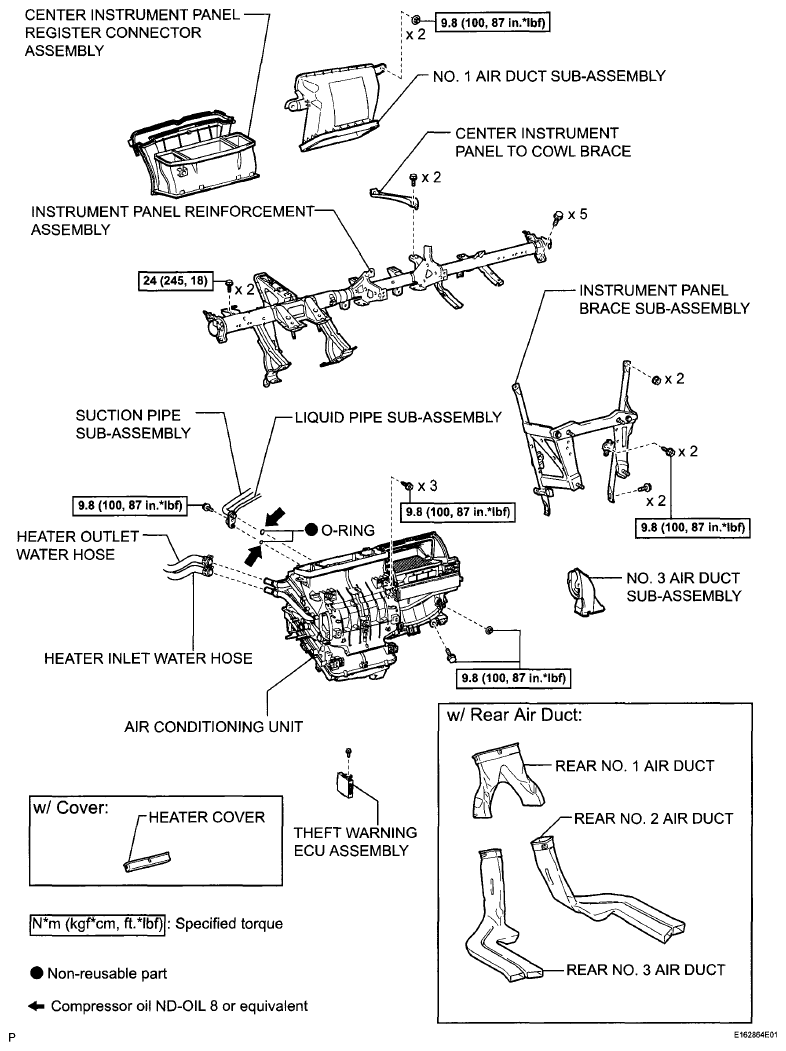

Fig 11: Air Conditioning Unit Replacement Components With Torque Specifications (11 Of 14)

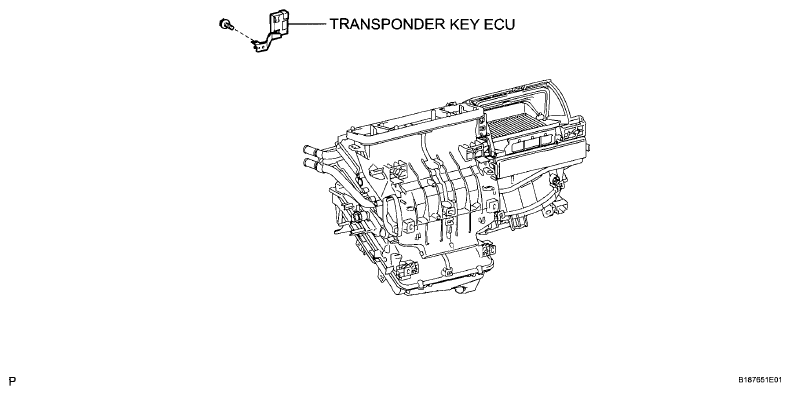

Fig 12: Identifying Air Conditioning Unit Components (12 Of 14)

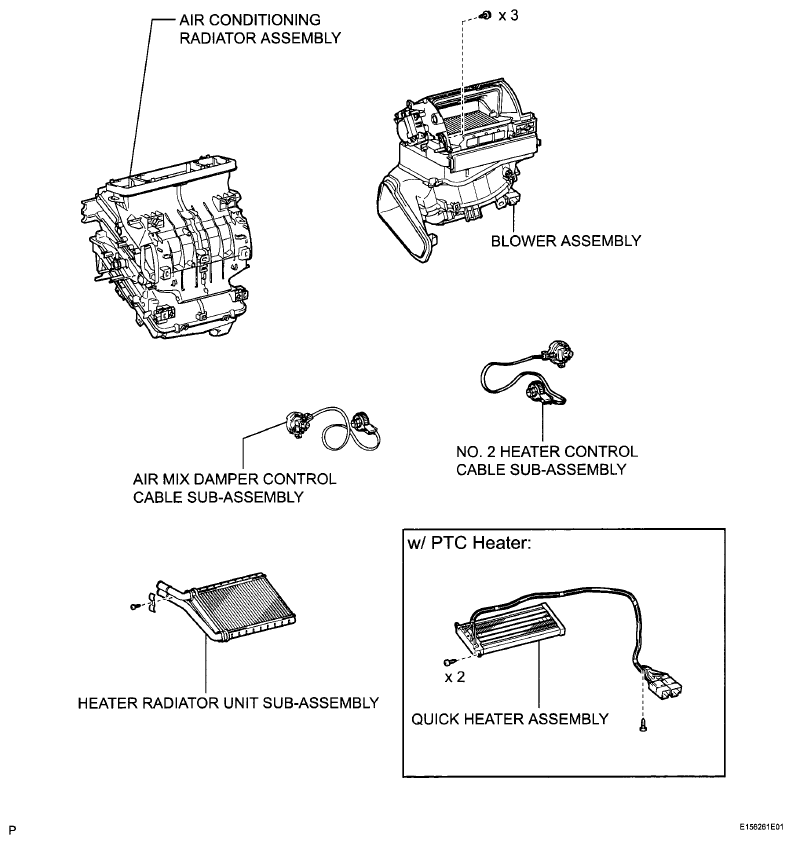

Fig 13: Identifying Air Conditioning Unit Components (13 Of 14)

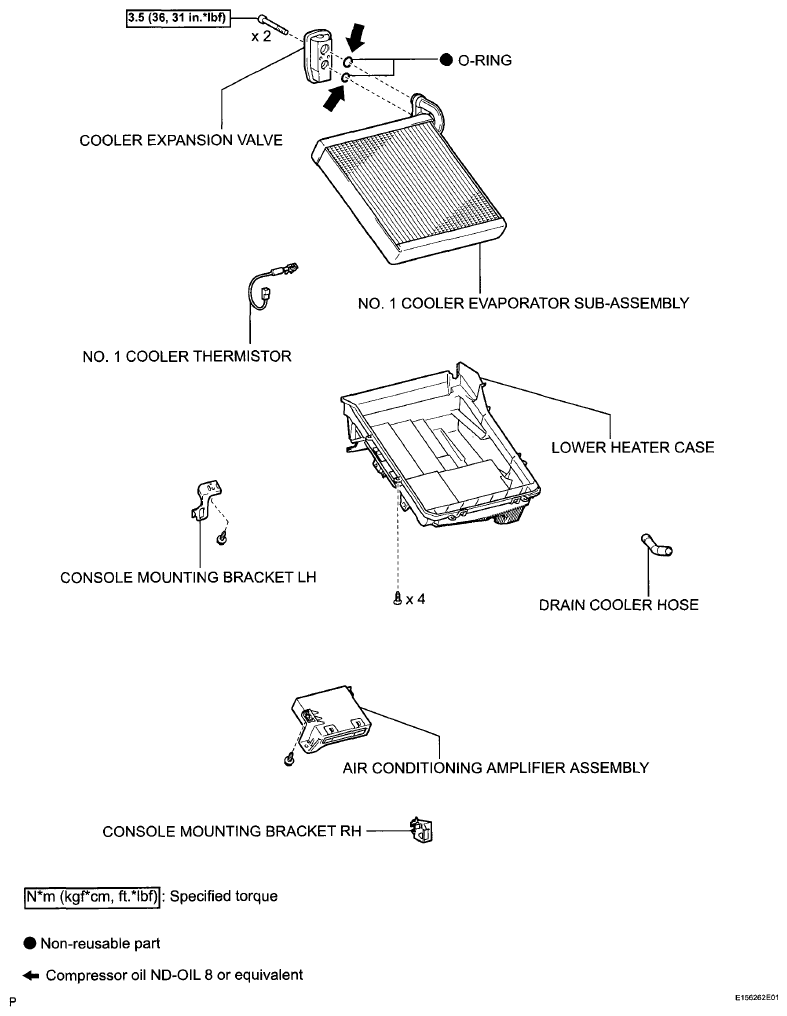

Fig 14: Air Conditioning Unit Replacement Components With Torque Specifications (14 Of 14)
