Ambient Temperature Sensor: Installation

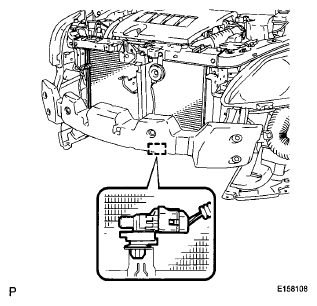

- INSTALL AMBIENT TEMPERATURE SENSOR
- Engage the clamp to install the ambient temperature sensor.
- Connect the connector.
- INSTALL FRONT BUMPER ASSEMBLY (w/o Front Spoiler)
(See
INSTALLATION
)
- INSTALL FRONT BUMPER ASSEMBLY (w/ Front Spoiler)
(See
INSTALLATION
)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light)
(See ADJUSTMENT
)
- PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light)
(See ADJUSTMENT
)
- INSPECT FOG LIGHT AIMING (w/ Fog Light)
(See
ADJUSTMENT
)
- ADJUST FOG LIGHT AIMING (w/ Fog Light)
(See ADJUSTMENT
)
