Blower Unit: Reassembly

  1. INSTALL BLOWER MOTOR SUB-ASSEMBLY
    1. Install the blower motor sub-assembly with the 3 screws.
    Fig 1: Locating Blower Motor Sub-Assembly Screws
    G06015453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER RESISTOR
    1. Install the blower resistor with the 2 screws.
    Fig 2: Locating Blower Resistor Screws
    G06015452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CLEAN AIR FILTER
    1. Install the clean air filter as shown in the illustration.
    Fig 3: Installing Air Filter
    G06015456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AIR FILTER CASE
    1. Install the air filter case as shown in the illustration.

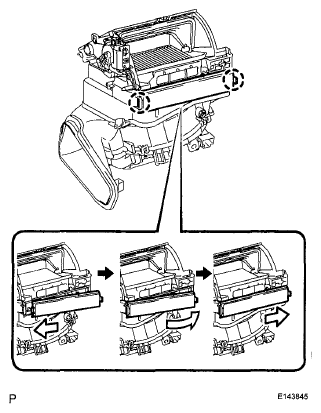

    Fig 4: Installing Air Filter Case
    G06015457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR INLET CONTROL SERVO MOTOR
    1. Install the air inlet control servo motor with the 2 screws.
    Fig 5: Identifying Air Inlet Control Servo Motor With Screws
    G06015448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
