Spiral Cable: Components

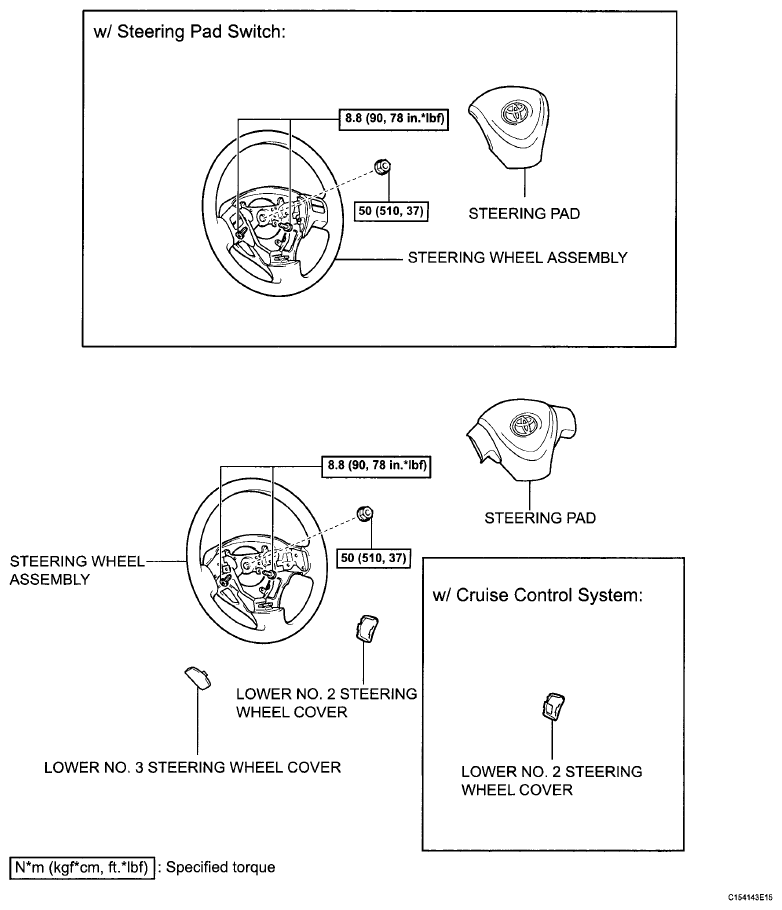

Fig 1: Spiral Cable Replacement Components With Torque Specifications (1 Of 5)
G06036982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Spiral Cable Components (2 Of 5)
G06036983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Spiral Cable Components (3 Of 5)
G06036984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Spiral Cable Components (4 Of 5)
G06036985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

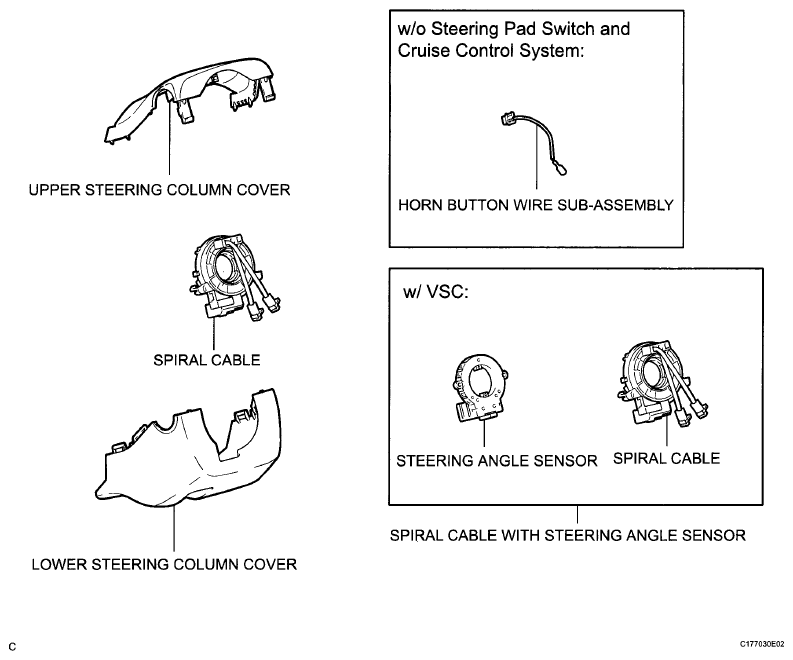

Fig 5: Identifying Spiral Cable Components (5 Of 5)
G06036986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
