Power Assist Steering Systems
›
Power Steering System
›
EPS Warning Light Circuit
›
Wiring Diagram
EPS Warning Light Circuit: Wiring Diagram

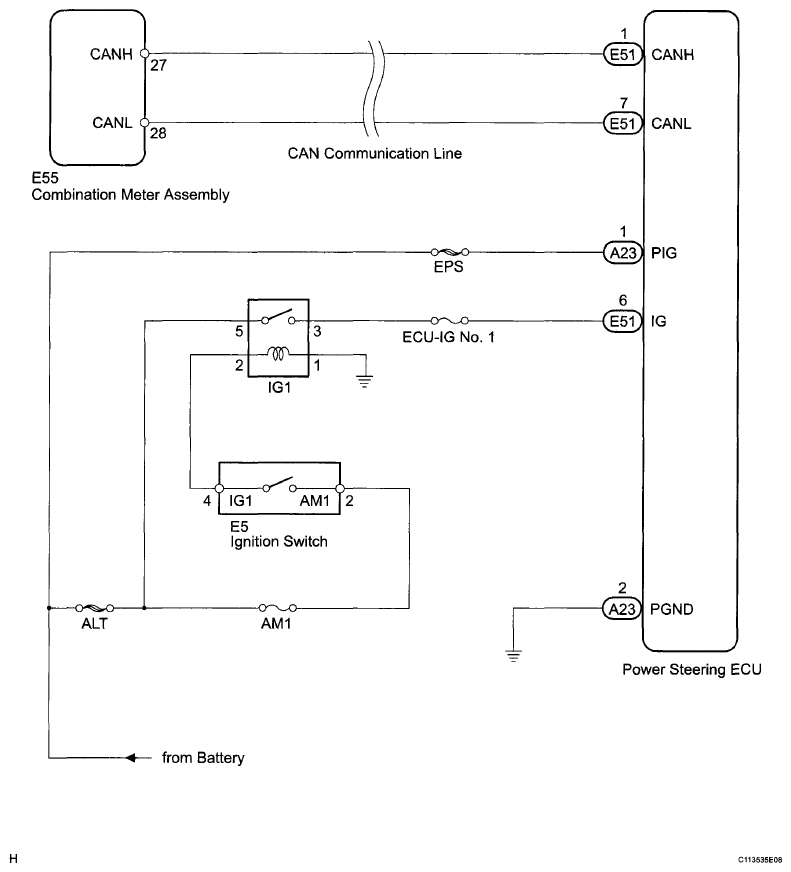

Fig 1: EPS Warning Light Circuit - Wiring Diagram
