Parts Location

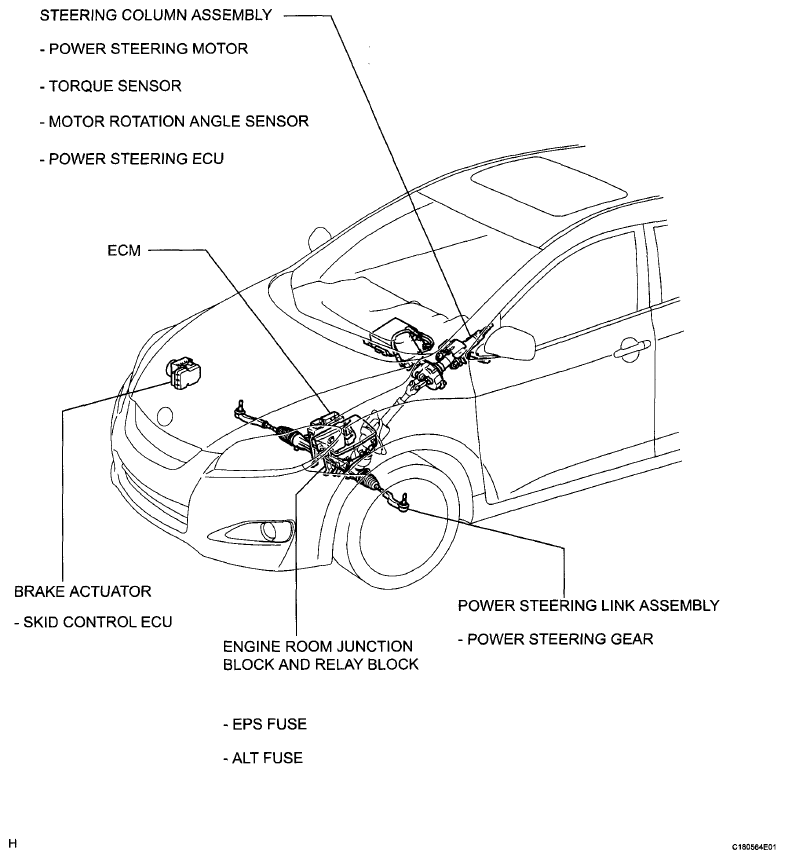

Fig 1: Identifying Power Steering System Parts Location (1 Of 2)
G06035500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Power Steering System Parts Location (2 Of 2)
G06035501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
