Front Shock Absorber: Installation

HINT:

• Use the same procedure for the LH side and RH side.
• The following procedure listed is for the LH side.
  Fig 1: Compressing And Extending Shock Absorber Rod

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. SECURE FRONT SHOCK ABSORBER
   1. Install the bolt and nut to the front shock absorber as shown in the illustration and secure the front shock absorber in a vise.

      A:

      28 mm (1.10 in.)

      Fig 2: Identifying Front Shock Absorber Bolt And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT COIL SPRING LOWER INSULATOR
   1. Install the front coil spring lower insulator to the front shock absorber.
      NOTE: Make sure that the front coil spring lower insulator is positioned in the depression of the lower spring seat.
3. INSTALL FRONT SPRING BUMPER
   Fig 3: Installing Front Coil Spring Lower Insulator To Front Shock Absorber

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT COIL SPRING
   1. Using SST, compress the front coil spring.

      SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

      NOTE: Do not use an impact wrench. It will damage SST.
      Fig 4: Compressing Front Coil Spring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the front coil spring.
      NOTE: Fit the lower end of the front coil spring into the gap of the spring lower seat.
      Fig 5: Installing Front Coil Spring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT COIL SPRING UPPER INSULATOR
   1. Install the front coil spring upper insulator to the front shock absorber with the protrusion on the insulator facing the outside of the vehicle.
      Fig 6: Installing Front Coil Spring Upper Insulator To Front Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FRONT COIL SPRING UPPER SEAT
   1. Install the front coil spring upper seat to the front shock absorber assembly with the mark facing the outside of the vehicle.
      NOTE:

      • Align the cutout of the front coil spring upper seat with the protrusion on the front coil spring upper insulator.
      • Check that the slot on the piston rod and the slot on the front coil spring upper seat are aligned.
        Fig 7: Installing Front Coil Spring Upper Seat

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT SUSPENSION SUPPORT DUST SEAL
   1. Install a new front suspension support dust seal.
8. INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY
9. TEMPORARILY TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
   1. Temporarily tighten a new front support to front shock absorber nut.
   2. Remove SST from the front coil spring.
      NOTE: Do not use an impact wrench. It will damage SST.
      Fig 8: Installing Front Support To Front Shock Absorber Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING

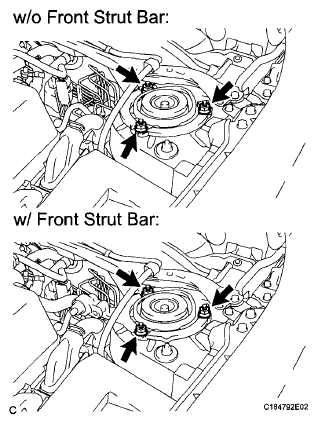

    1. Install the front shock absorber with coil spring (upper side) with the 3 nuts.

       Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

       Fig 9: Locating Front Shock Absorber Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front shock absorber with coil spring (lower side) to the steering knuckle with the 2 bolts and 2 nuts.

       Torque: 240 N*m (2447 kgf*cm, 177 ft.*lbf)

       NOTE: Keep the bolts from rotating and tighten the nuts.
       Fig 10: Locating Front Shock Absorber Bolts And Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

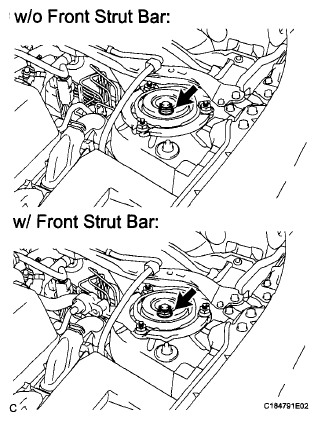

    3. Fully tighten the front support to front shock absorber nut.

       Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

       Fig 11: Locating Front Shock Absorber Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

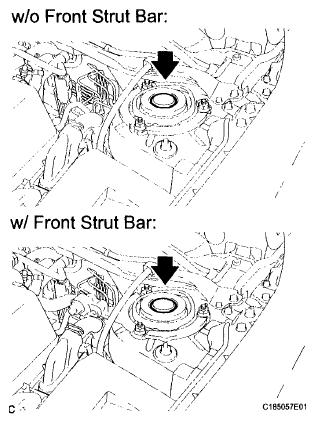

    4. Apply No. 2 MP grease into the suspension support sub-assembly.
       NOTE: Do not apply grease to the rubber surfaces of the front suspension support sub-assembly.
       Fig 12: Identifying No. 2 MP Grease Application Area

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL FRONT SUSPENSION SUPPORT DUST COVER
    1. Install the front suspension support dust cover.
       Fig 13: Installing Front Suspension Support Dust Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL FRONT SPEED SENSOR
    1. Install the front speed sensor and front flexible hose to the front shock absorber with the bolt.

       Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

       NOTE: Do not twist the front speed sensor when installing it.

       HINT:

       Install the speed sensor harness bracket first and then the front flexible hose.

       Fig 14: Locating Front Flexible Hose Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front speed sensor with the clamp to the front shock absorber.
       Fig 15: Identifying Front Speed Sensor Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSTALL FRONT STABILIZER LINK ASSEMBLY
    1. Install the front stabilizer link assembly to the front shock absorber with coil spring with the nut.

       Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

       NOTE: If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud bolt.
14. INSTALL OUTER COWL TOP PANEL  (See INSTALLATION )
15. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See INSTALLATION )
    Fig 16: Installing Front Stabilizer Link Assembly

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL COWL TOP VENTILATOR LOUVER LH  (See INSTALLATION )
17. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
18. INSTALL HOOD TO COWL TOP SEAL  (See INSTALLATION )
19. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See INSTALLATION )
20. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See INSTALLATION )
21. INSTALL FRONT WIPER ARM HEAD CAP  (See INSTALLATION )
22. INSTALL FRONT WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

23. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    HINT:

    Inspect and adjust front wheel alignment (See FRONT WHEEL ALIGNMENT ).
