Output Shaft: Components

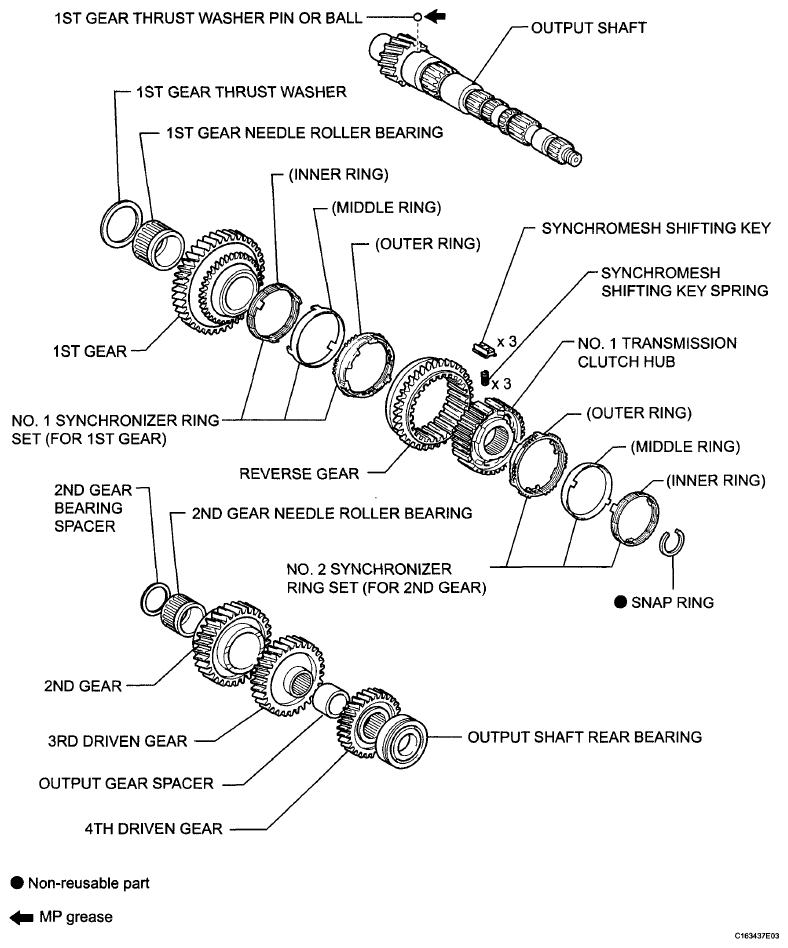

Fig 1: Identifying Output Shaft Components

G06012924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
