Shift And Select Lever Shaft: Components

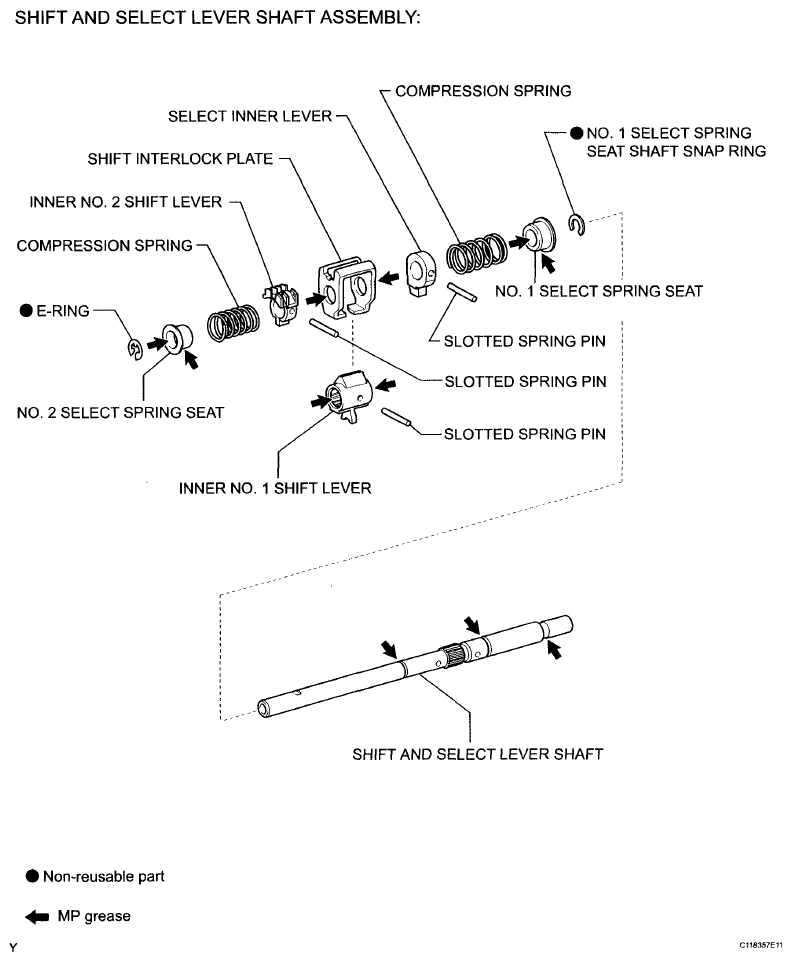

Fig 1: Shift And Select Lever Shaft Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Shift And Select Lever Shaft Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
