Transmission Control Cable: Components

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Transmission Control Cable Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Transmission Control Cable Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

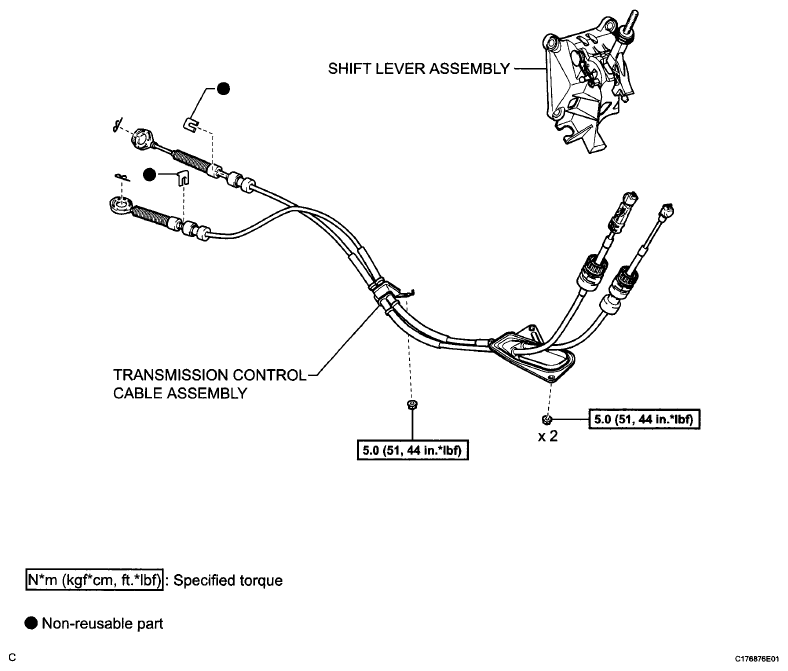

Fig 4: Transmission Control Cable Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
