Cruise Control Switch Circuit: Wiring Diagram

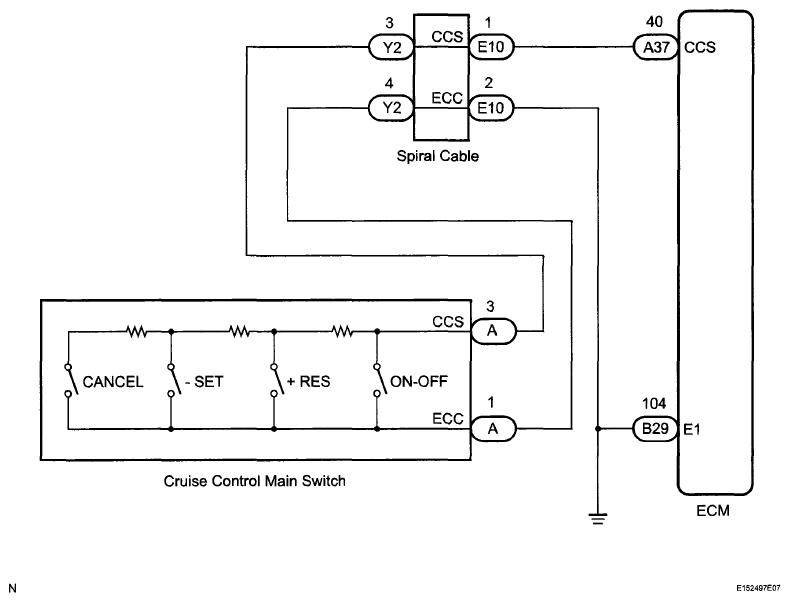

Fig 1: Cruise Control Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
