System Diagram

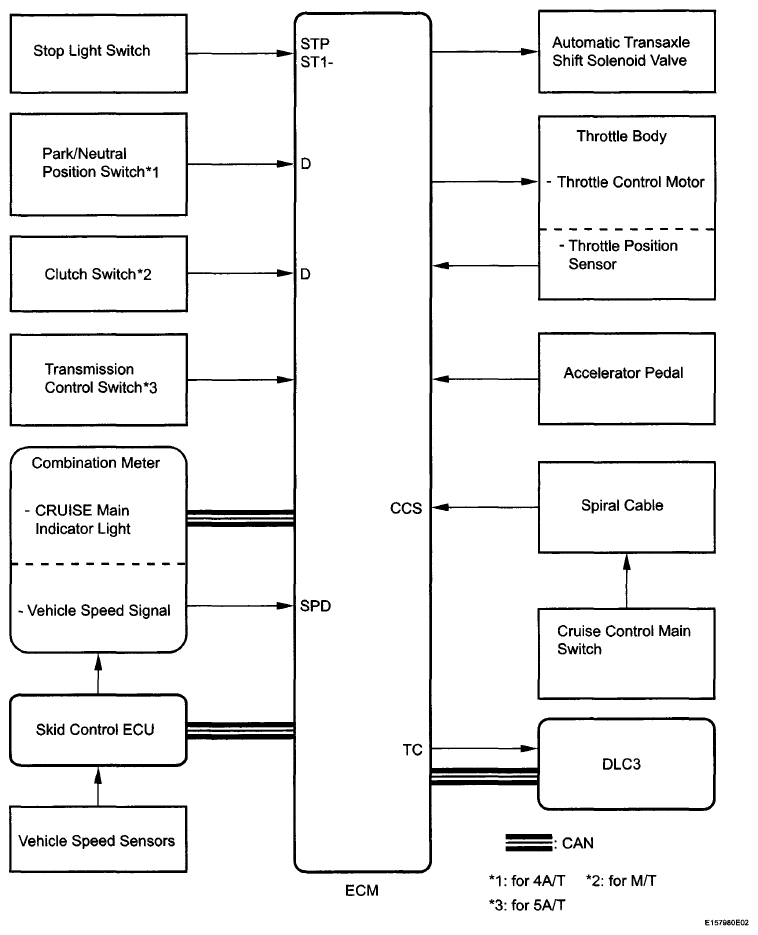

Fig 1: Cruise Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sander	Receiver	Signal	Line
ECM	Combination Meter ECU	CRUISE main indicator operation signal	CAN
