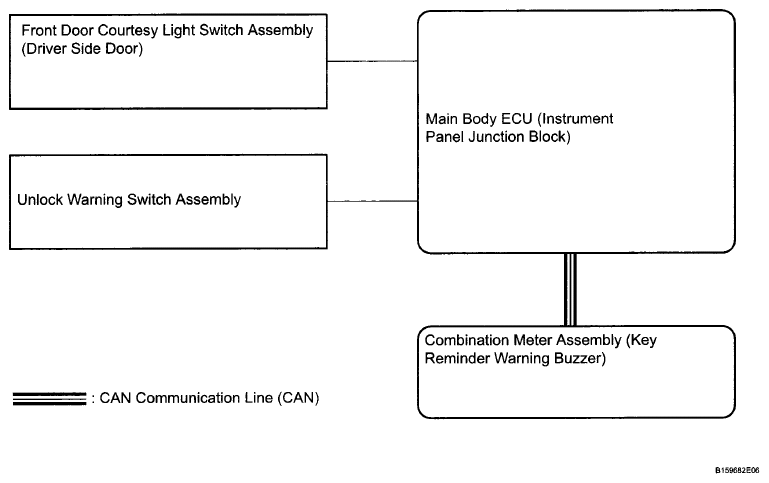

System Diagram
Main Body ECU
SIGNAL REFERENCE
| Transmitting ECU | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Main Body ECU (Instrument Panel Junction Block) | Combination Meter Assembly | Driver side door courtesy light switch signal | CAN |
| Main Body ECU (Instrument Panel Junction Block) | Combination Meter Assembly | Unlock warning switch signal | CAN |
