Matrix S, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Cigarette Lighter/Power Outlet (12V)
›
Notes
Cigarette Lighter/Power Outlet (12V): Notes

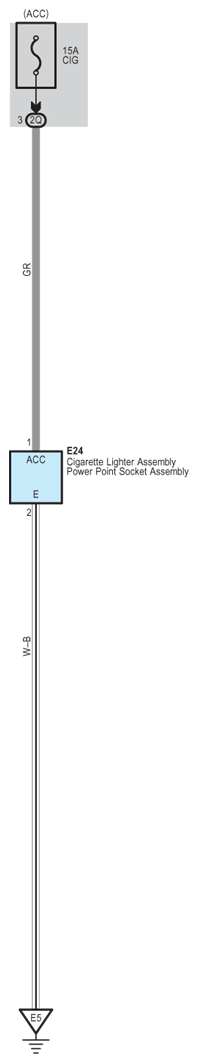

Fig 1: Cigarette Lighter/Power Outlet (12V) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
