Fuel Injector Circuit: Wiring Diagram

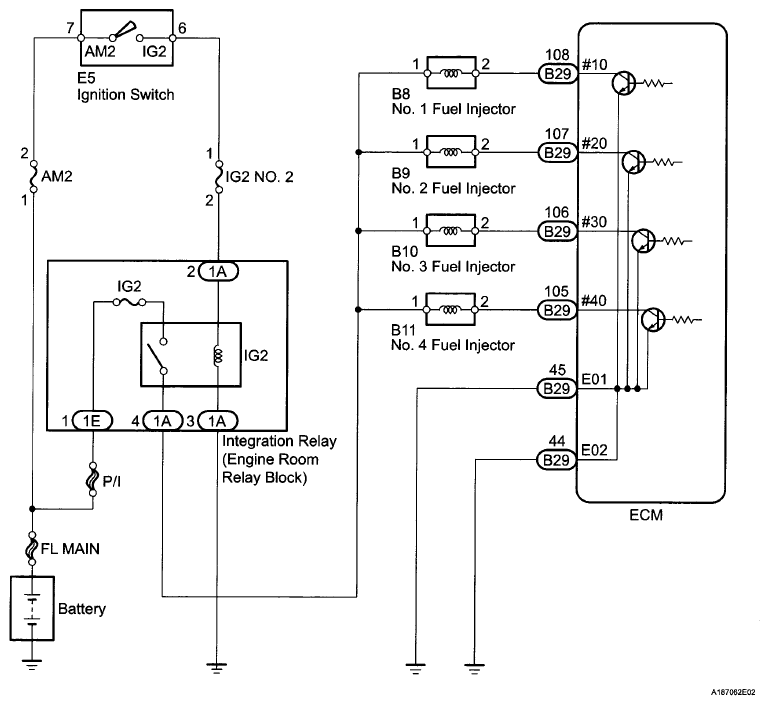

Fig 1: Fuel Injector - Wiring Diagram
G06040258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
