Fuel Pump Control Circuit: Wiring Diagram

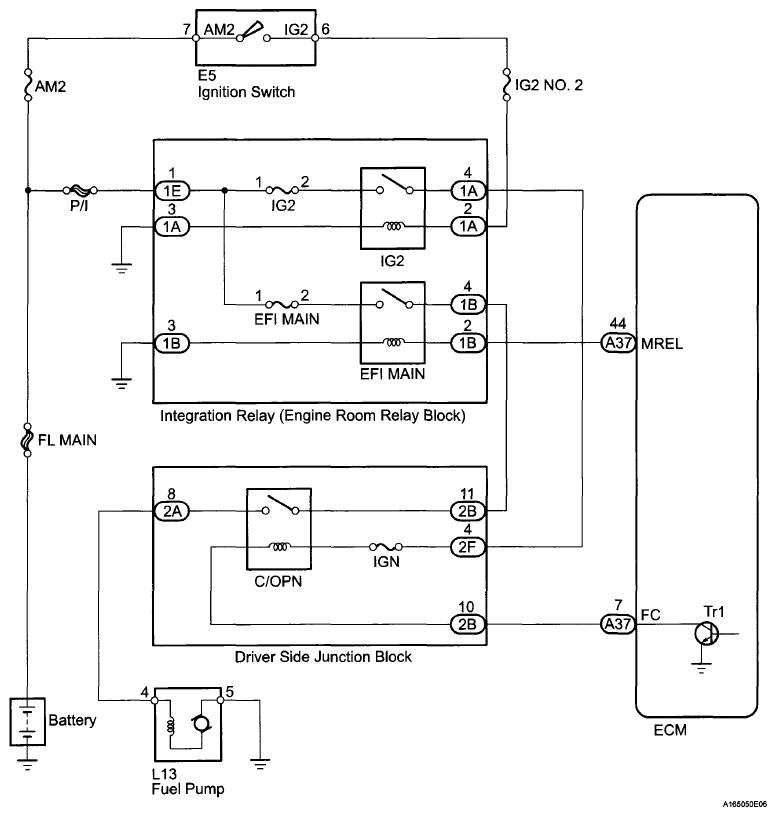

Fig 1: Ignition Switch - Wiring Diagram
G06040251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
