VC Output Circuit: Wiring Diagram

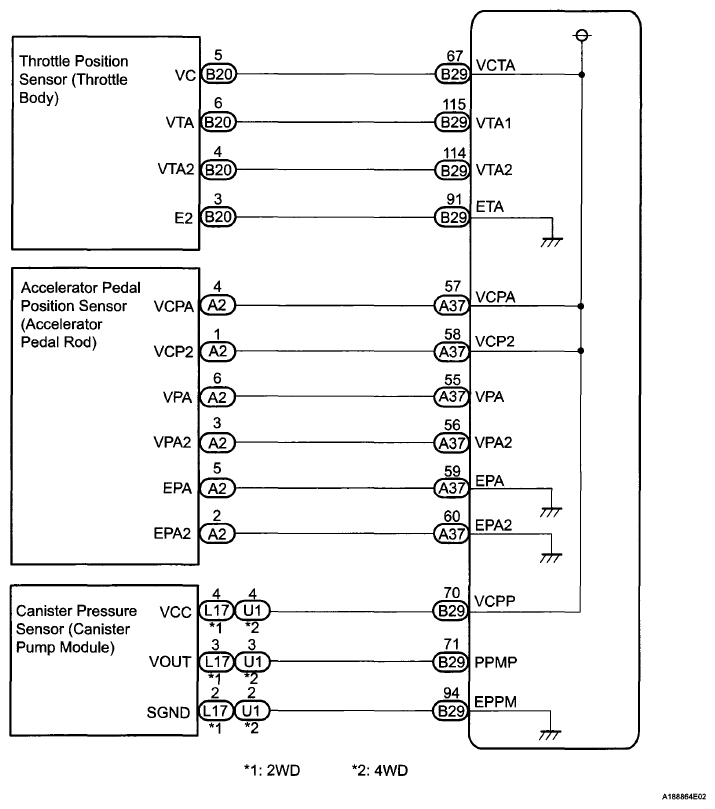

Fig 1: Throttle Position Sensor - Wiring Diagram

G06040247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
